IPA 9107B Electric Brake Force Meter (3rd Gen) – Dynamic Load & Circuit Testing

Complete on-vehicle brake testing with dynamic load simulation

The IPA 9107B Electric Brake Force Meter is the latest generation of a portable diagnostics tool designed for modern tow vehicles. This 3rd Gen unit adds dynamic load simulation that mirrors real trailer braking, letting you evaluate response and control behavior without wiring in a trailer. The compact instrument is built for precision, clarity, and dependable results on newer model vehicles.

Powered by patented technology, the 9107B works with both factory brake controllers and popular aftermarket systems to deliver consistent diagnostics. Whether you’re in a shop, a dealership bay, or out in the field, you can align your test results with the actual braking dynamics you would expect in real world towing scenarios.

Key capabilities

• Simulates trailer brakes so tow vehicles can be tested without a trailer attached — simplifies workflow.

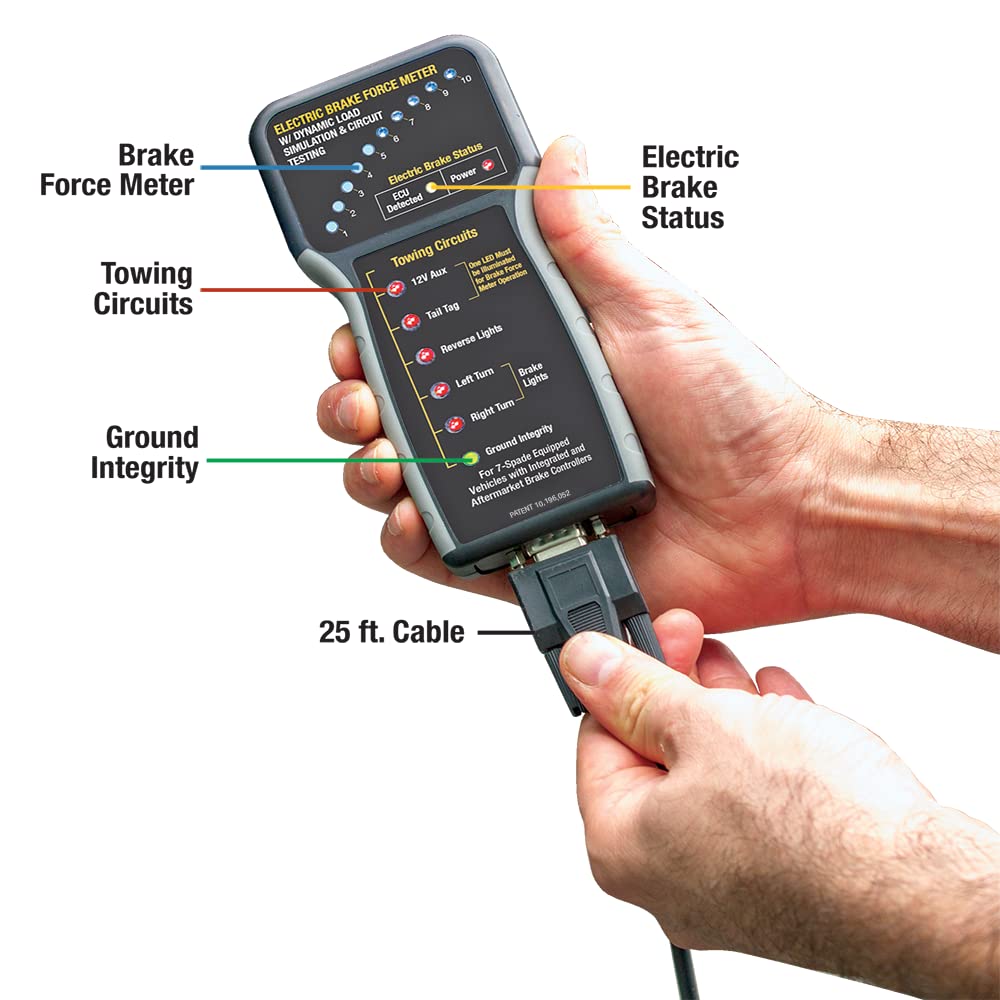

• Patented technology works with all integrated and aftermarket brake controllers for accurate diagnostics — broad compatibility.

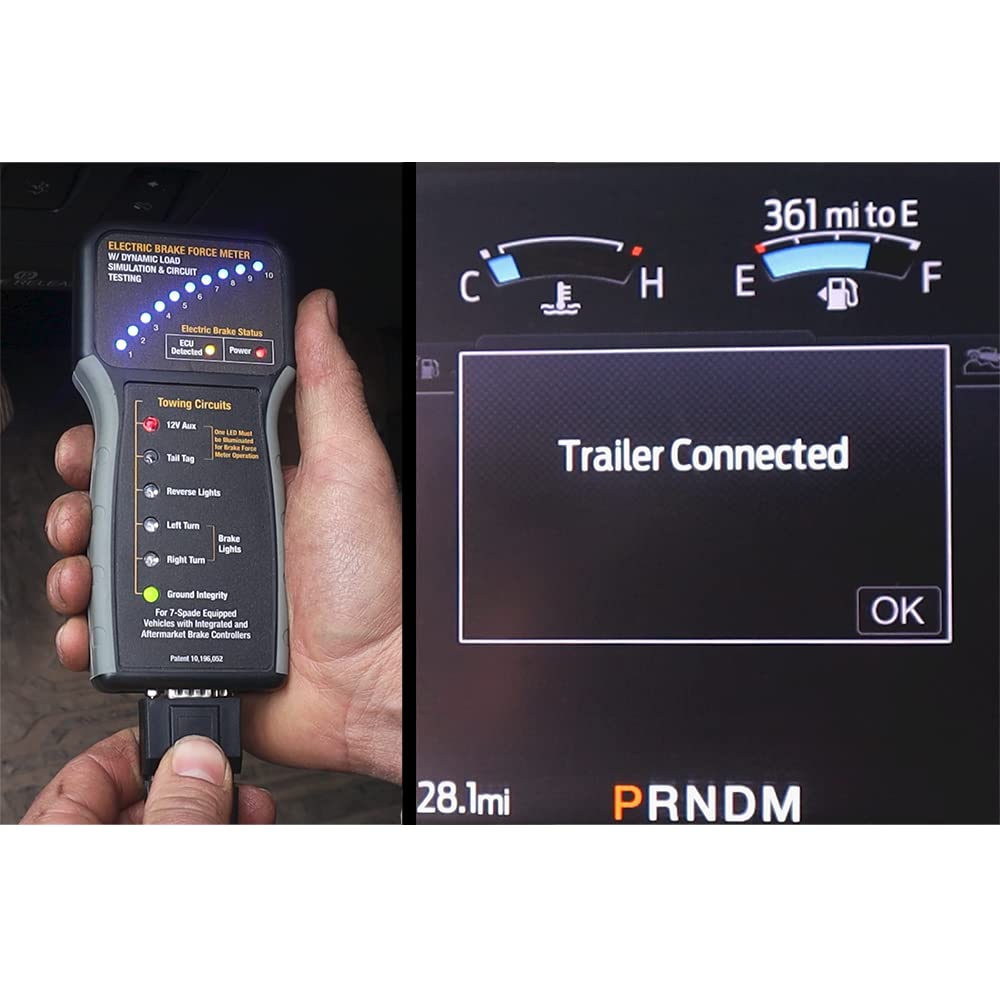

• Tests all lighting circuits and electric brake systems to detect wiring faults and connection issues — helps verify wiring integrity.

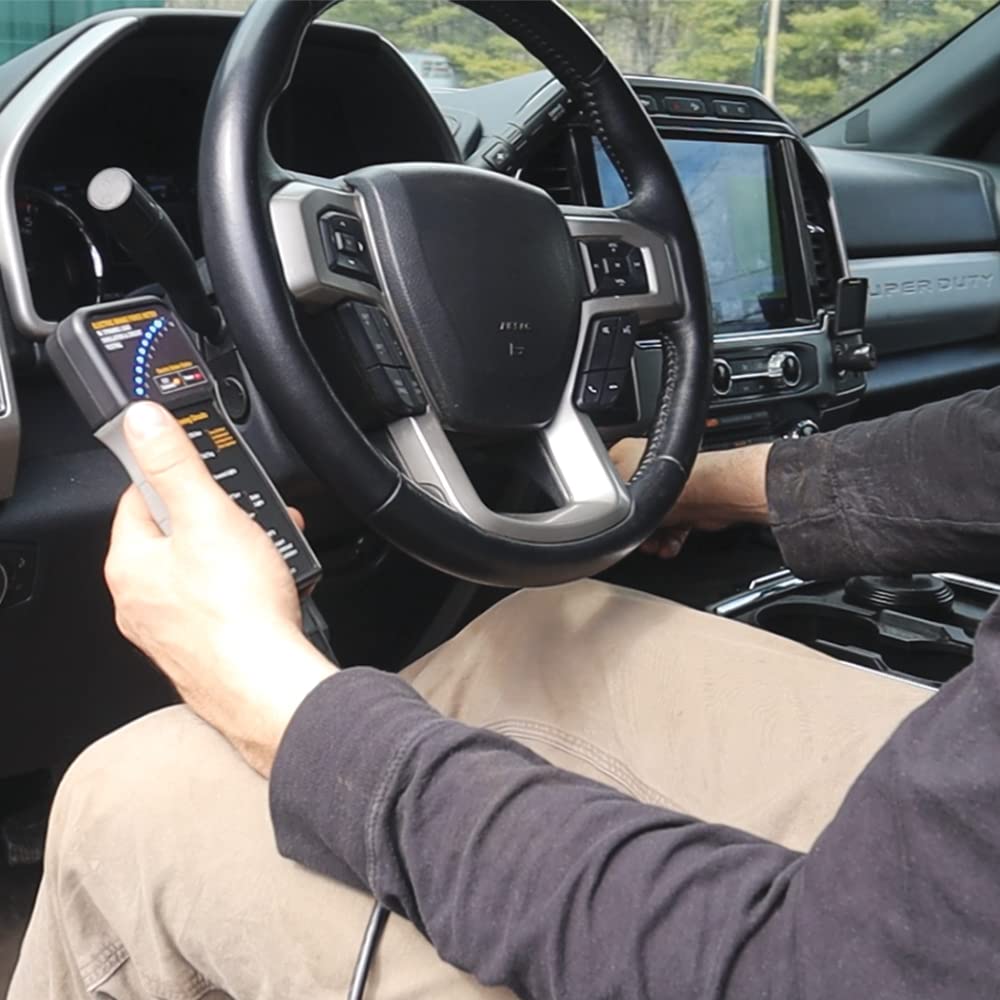

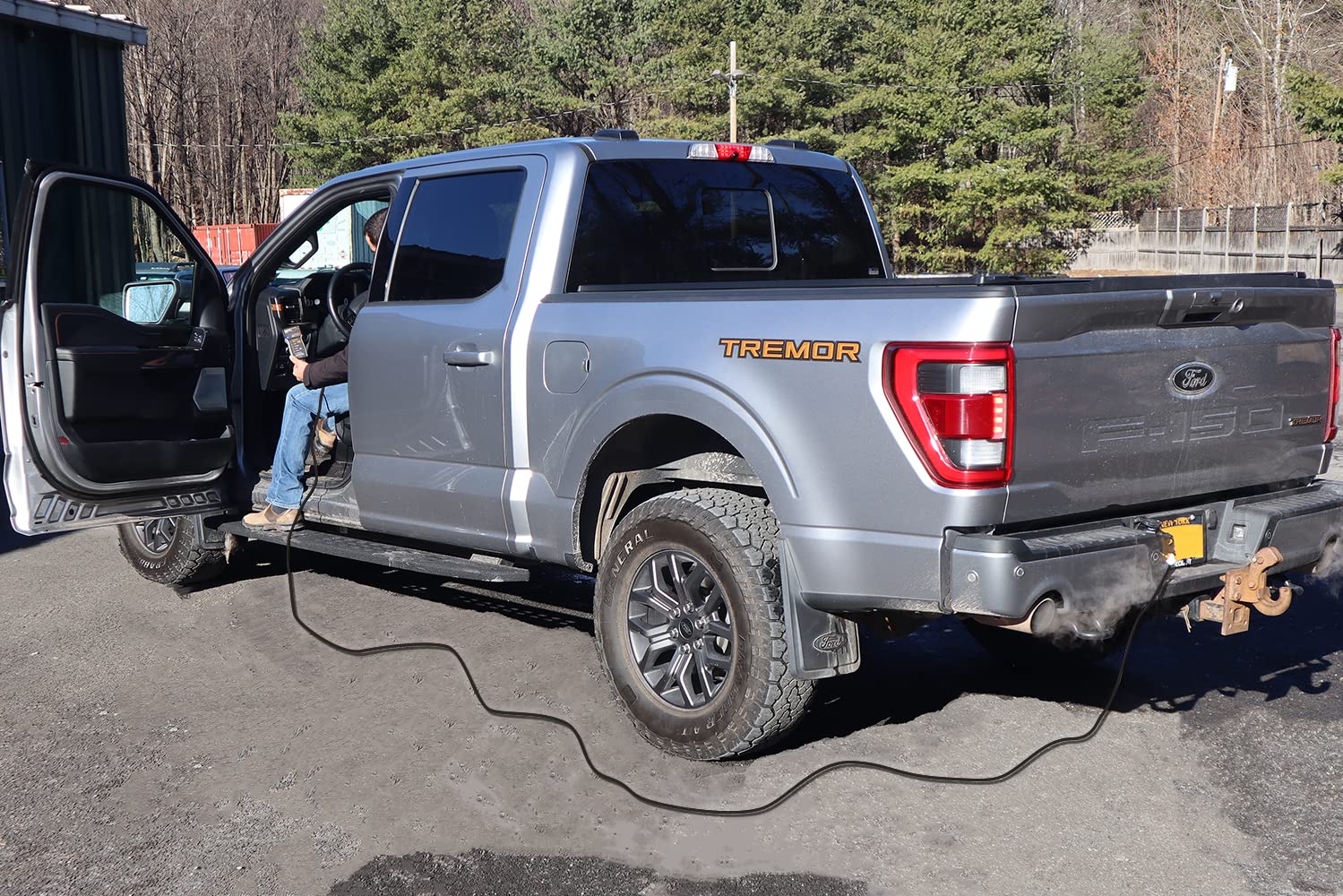

• Includes a 25-ft cord for solo operation and test drive functionality — flexible positioning during tests.
• Comes with a soft nylon case for easy storage and transport — ready for mobile service.

What you gain from using the IPA 9107B is a structured, repeatable testing process. The unit guides you through brake system checks and lighting circuit verification, so you can identify potential issues before they impact safety or performance. The instrument’s design emphasizes tactile usability: clear readouts, intuitive controls, and a compact footprint that travels well in a toolbox or service van.

Practical use cases

• Dealership technicians performing pre-delivery checks on new model vehicles to validate braking behavior.
• Independent shops diagnosing wiring faults or poor brake controller wiring without a trailer attached.
• Fleet maintenance teams conducting routine system audits to ensure braking and lighting circuits stay in spec.
• Educational shops teaching brake system diagnostics with a controlled, repeatable loading scenario.

For operators who value portability and clarity, the IPA 9107B pairs a compact tool with a durable soft case, a long testing cord, and straightforward operation. It is designed to slot into everyday workflows, offering possibilities for deeper inspection or adjustments where needed.
