JRready ST6306-1 Deutsch Connector Master Kit + Turret Crimp Tool | JRD-HDT-48

Overview

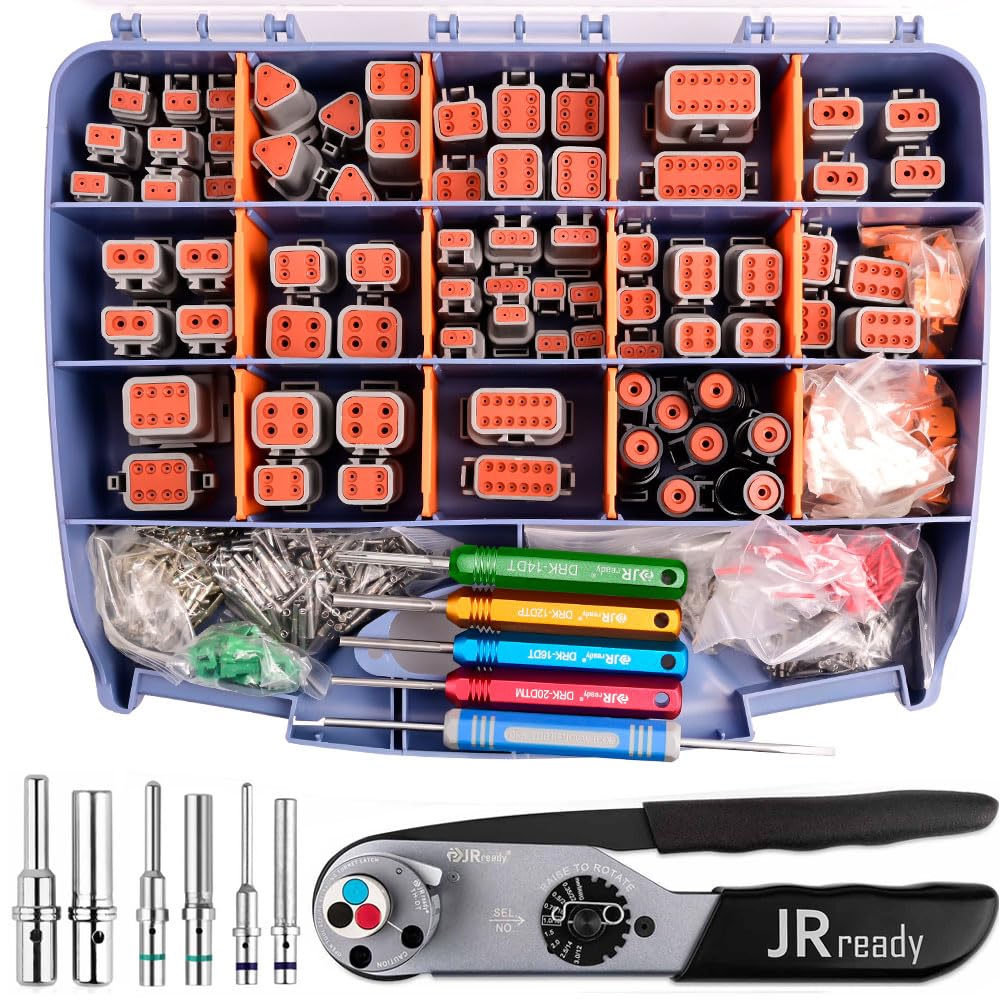

Discover a robust Deutsch connector master kit from JRready designed to simplify wiring projects that use 12–22 AWG solid conductors. The turret-style crimp tool features color-coded cores that align with terminal sizes 12, 16, and 20, enabling quick setup and accurate crimps. The three cores rotate to the correct color for the target terminal, reducing guesswork and material waste in real-world harness builds.

What you get

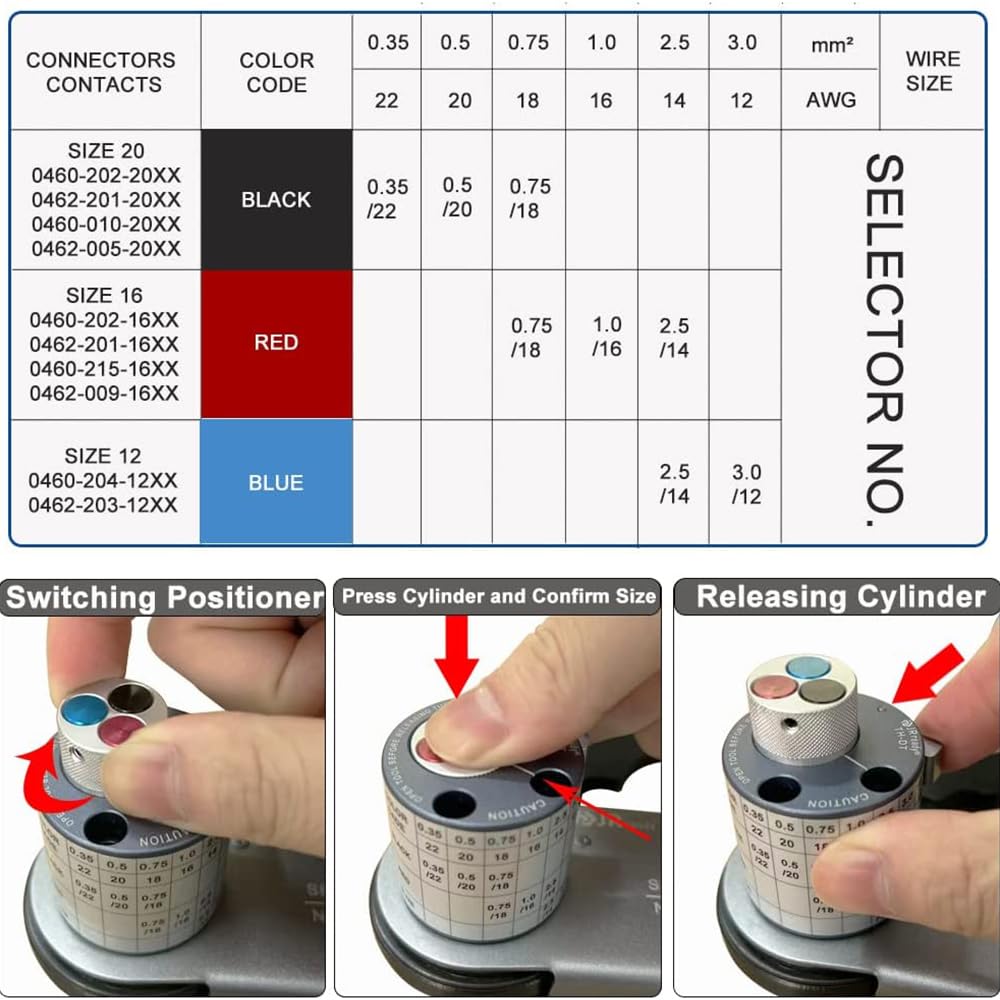

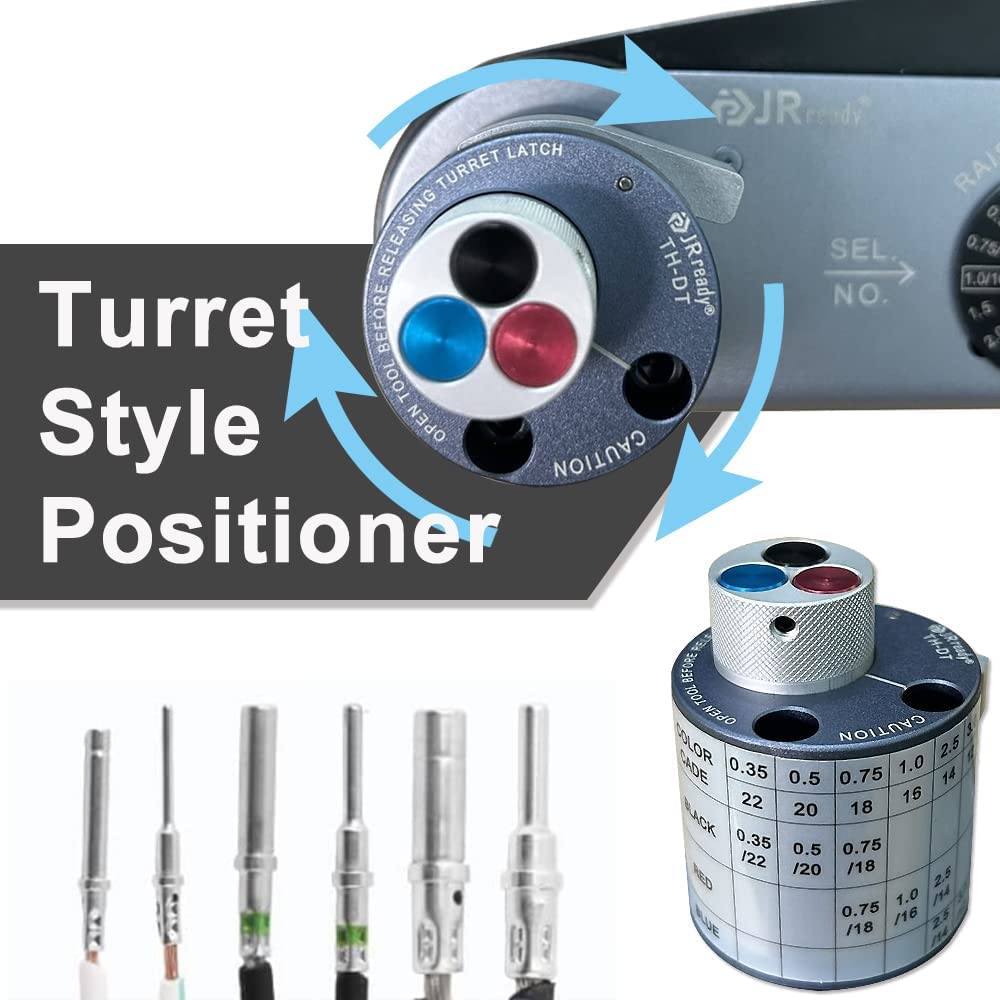

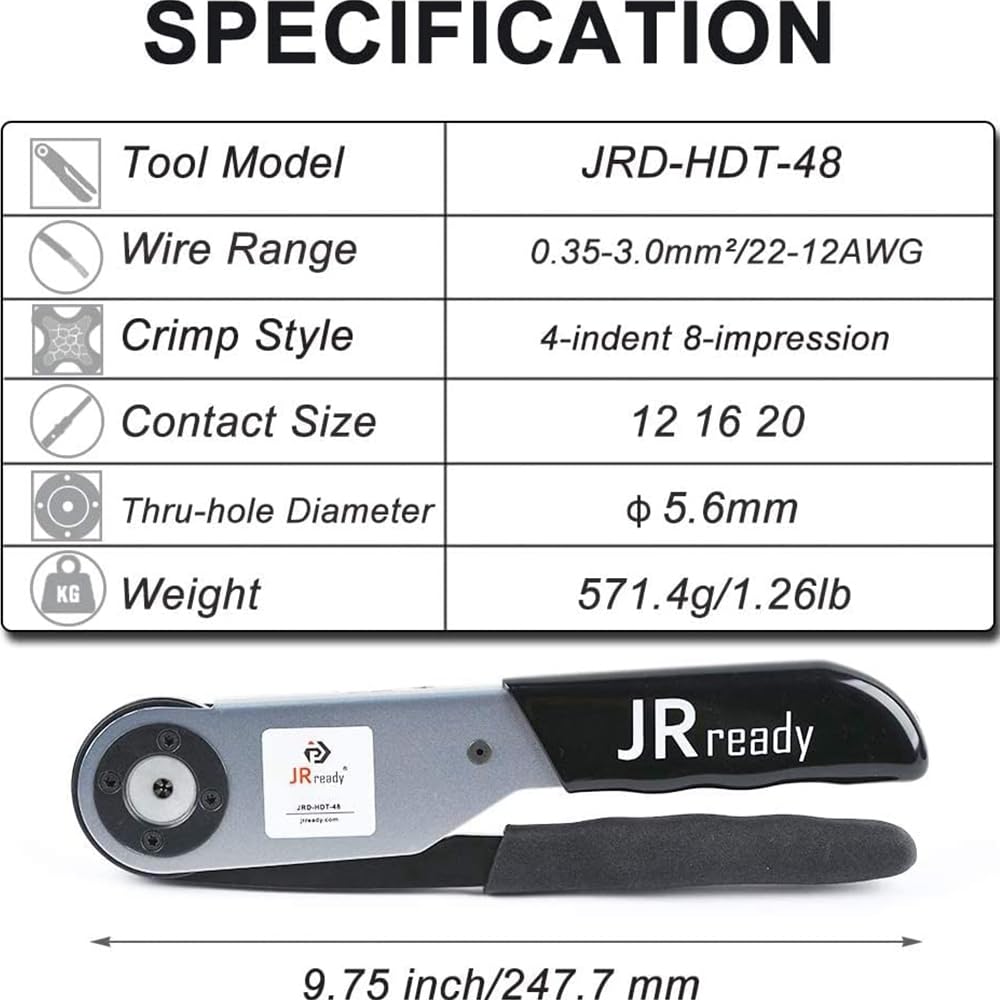

• Turret Positioner Crimper: Wire crimp range is 12–22 AWG, designed for Deutsch size 12, 16, 20 solid contacts. The positioner includes three different cores colored red (size 16), black (size 20), and blue (size 12), which rotate to the appropriate color for the terminal you’re working with.

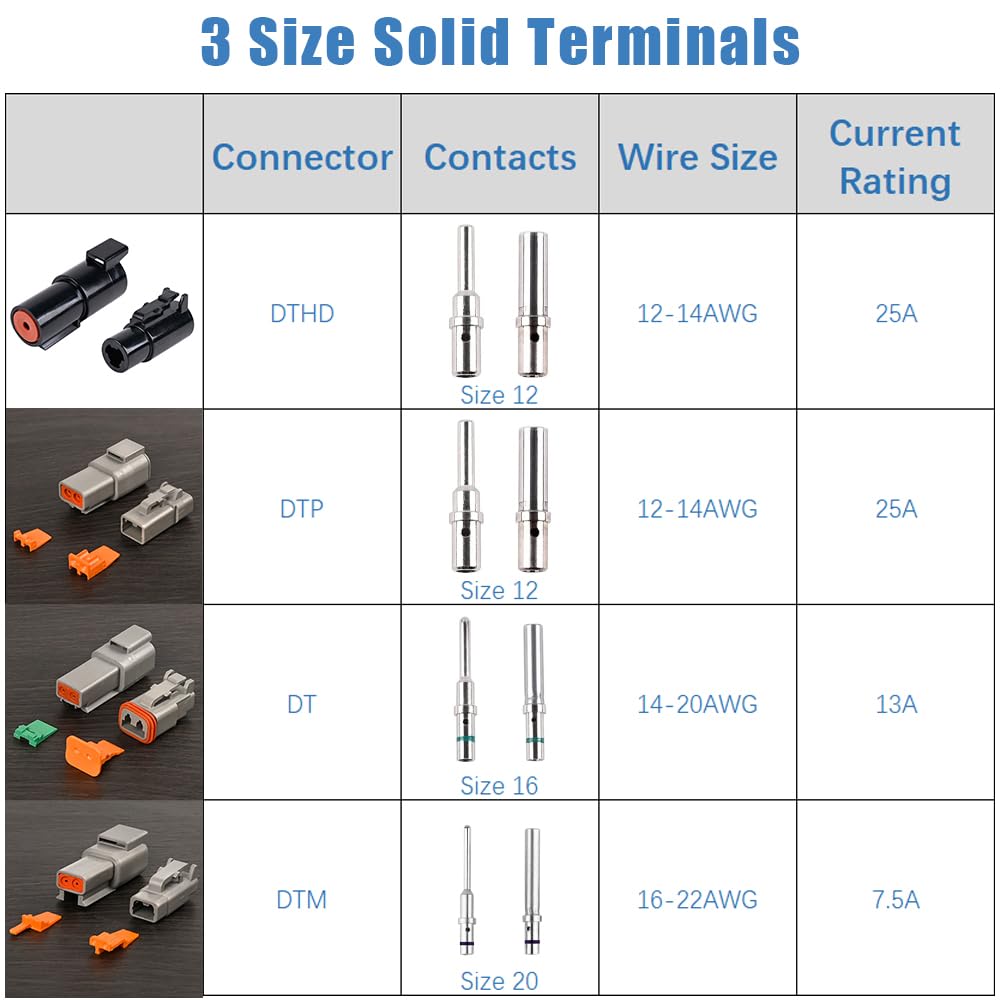

• Size 12, 16, 20 Solid Contacts: Tin bronze formulation provides solid conductivity and stability; nickel plating enhances corrosion resistance and wear, making terminals easier to crimp and install.

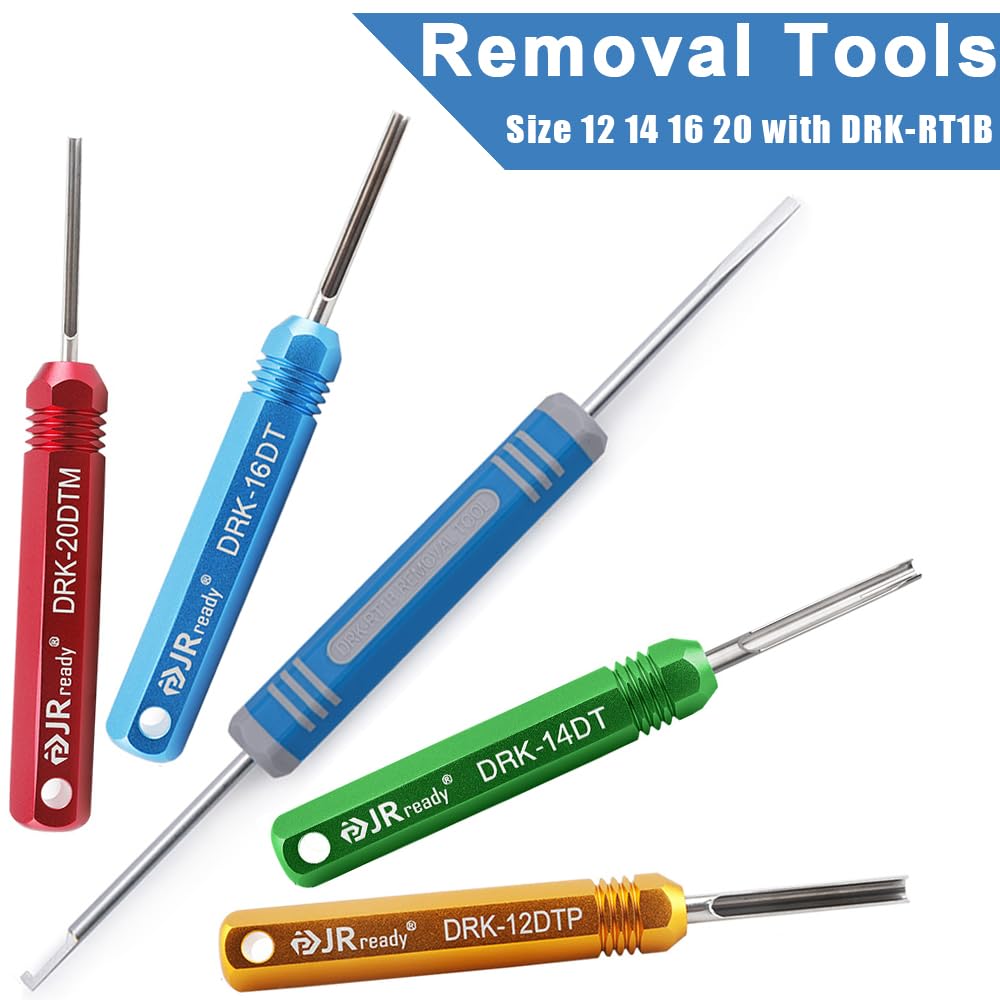

• Removal Tool: Stainless steel shaft delivers long service life; the longer anodized aluminum handle improves grip and control when extracting contacts without damaging wires.

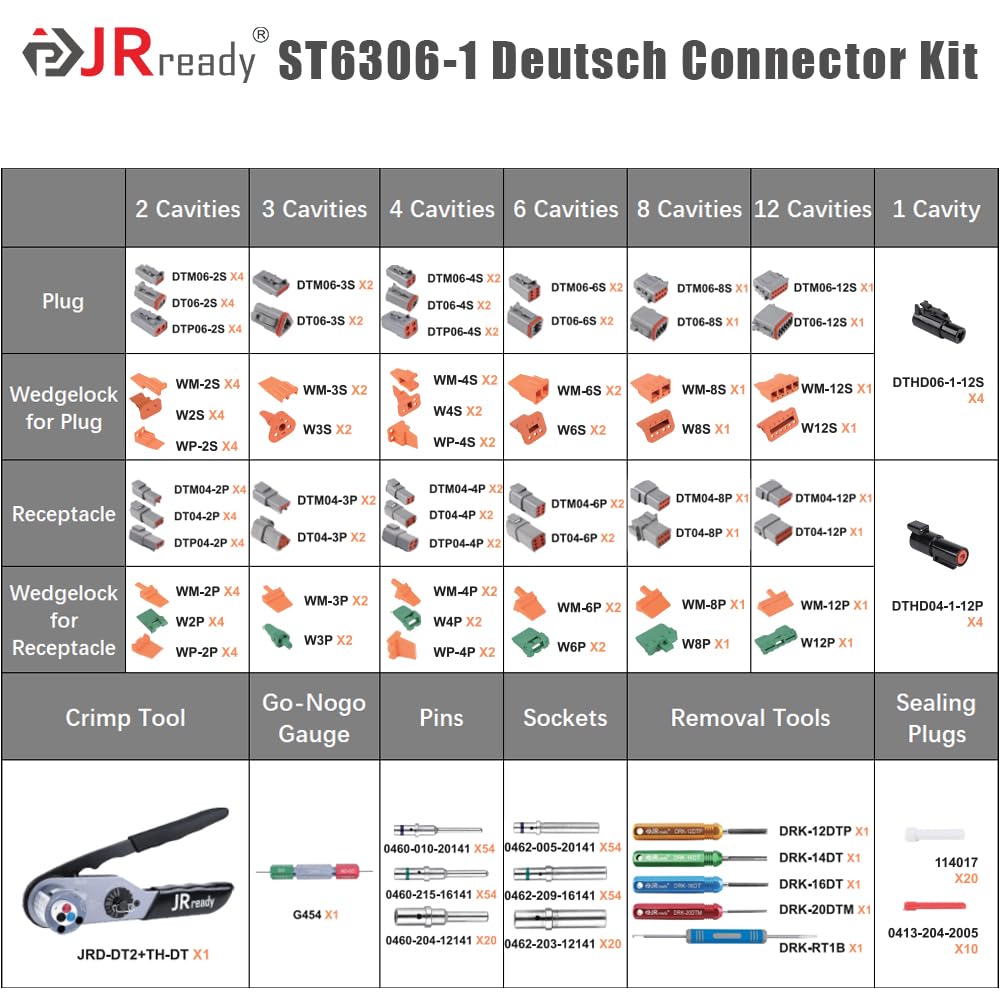

• DT/DTM/DTP Connectors: DT and DTM families offer 2, 3, 4, 6, 8, and 12 cavity options; DTP offers 2 and 4 cavities. All DT series are PA66 nylon for durability and water resistance, ideal for long-term use.
• DTHD Connectors: 1-pin connectors made of PEI material, featuring an integrated latch for mating and rubber sealing rings for waterproofing, suitable for mounting or inline use.

Durability and compatibility

Designed for repeatable performance, this kit emphasizes robust materials and thoughtful ergonomics. PA66 nylon bodies and nickel-plated contacts resist harsh environments, while the stainless steel removal shaft and ergonomic handles reduce fatigue during routine work and maintenance.

Usage scenarios

Ideal for automotive harness assemblies, marine electronics installations, off-road projects, and industrial control panels where dependable Deutsch connections matter. The set supports multiple cavity configurations, enabling flexible, long-term wiring without swapping tools.

Tips for best results

• Match the core color to the terminal size before crimping to improve alignment and consistency.
• Use the removal tool to minimize wire damage when detaching contacts from housings.

Note: This description highlights features and potential benefits based on the data provided. Actual outcomes depend on correct use and context.
