LDMINDA 4-Terminal 24V Continuous Duty Solenoid Relay 150A SPST 200A Peak - 24063

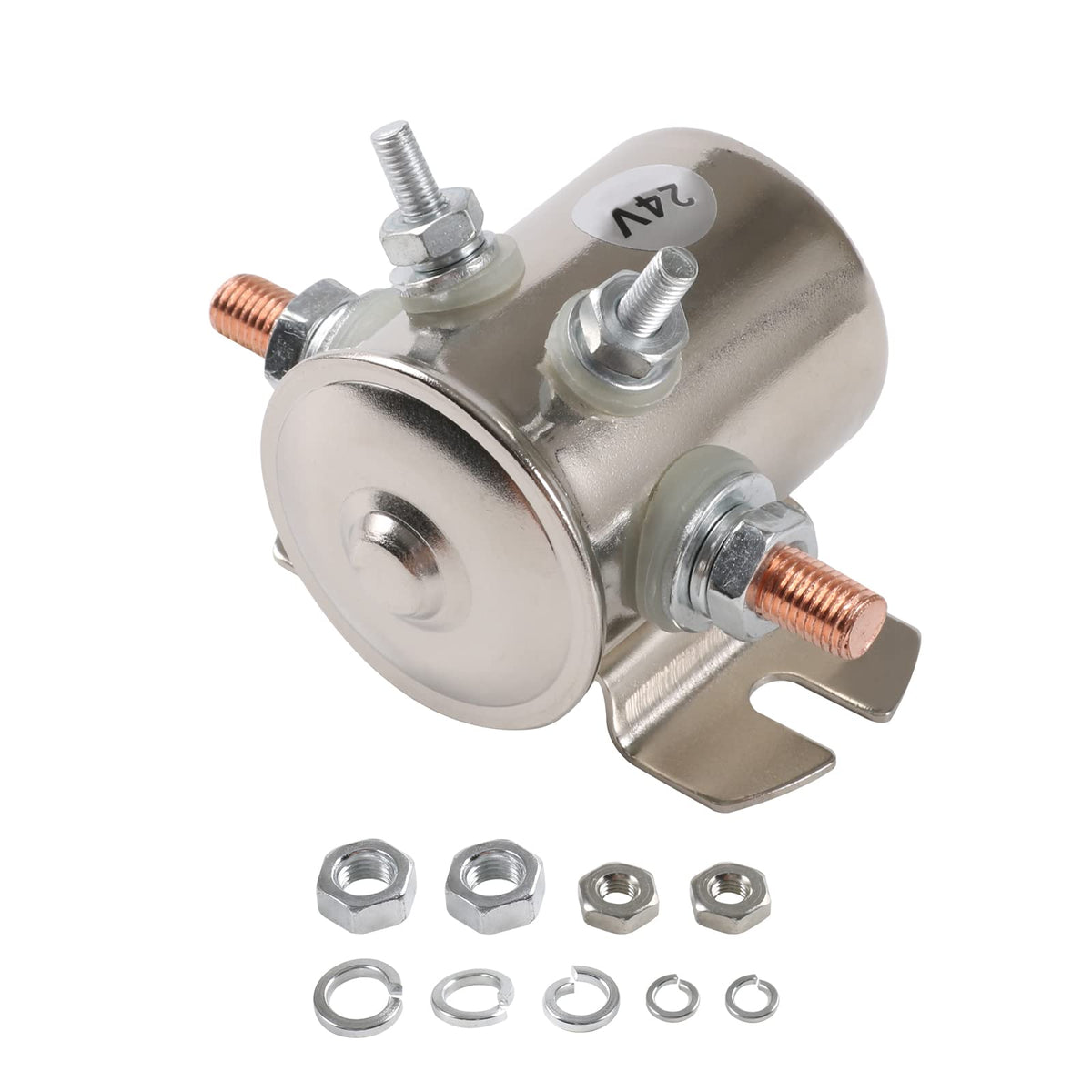

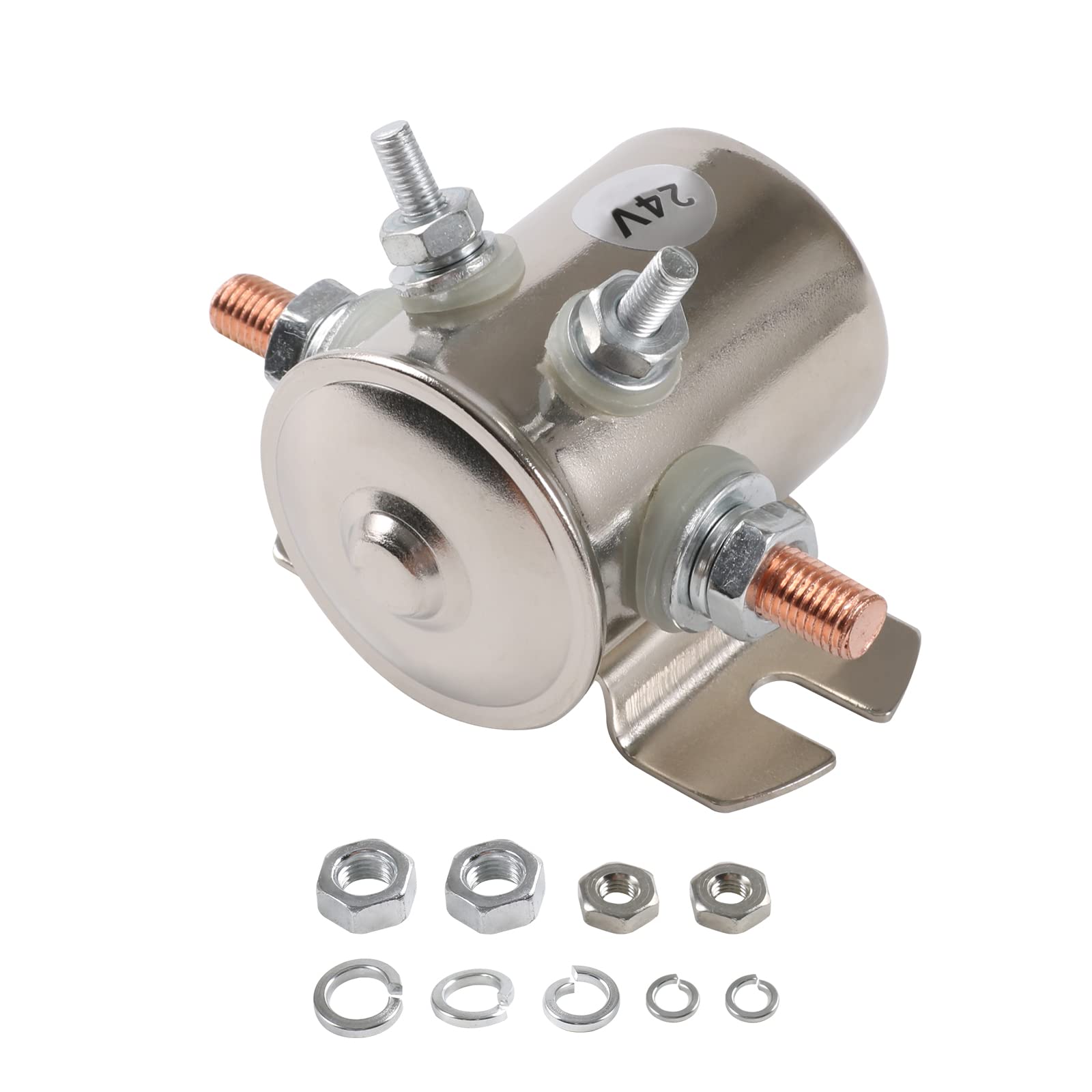

Meet the LDMINDA 4-Terminal 24V Continuous Duty Solenoid Relay

Designed to power demanding electronic switching, the LDMINDA 24V continuous duty solenoid delivers a compact yet rugged solution for golf carts, winches, marine gear, and other equipment that require reliable on/off control. With a 200A peak transient capability and a 150A rated current, it offers a balance of punch and dependability for high-load applications without compromising responsiveness.

Robust construction that stands up to the elements

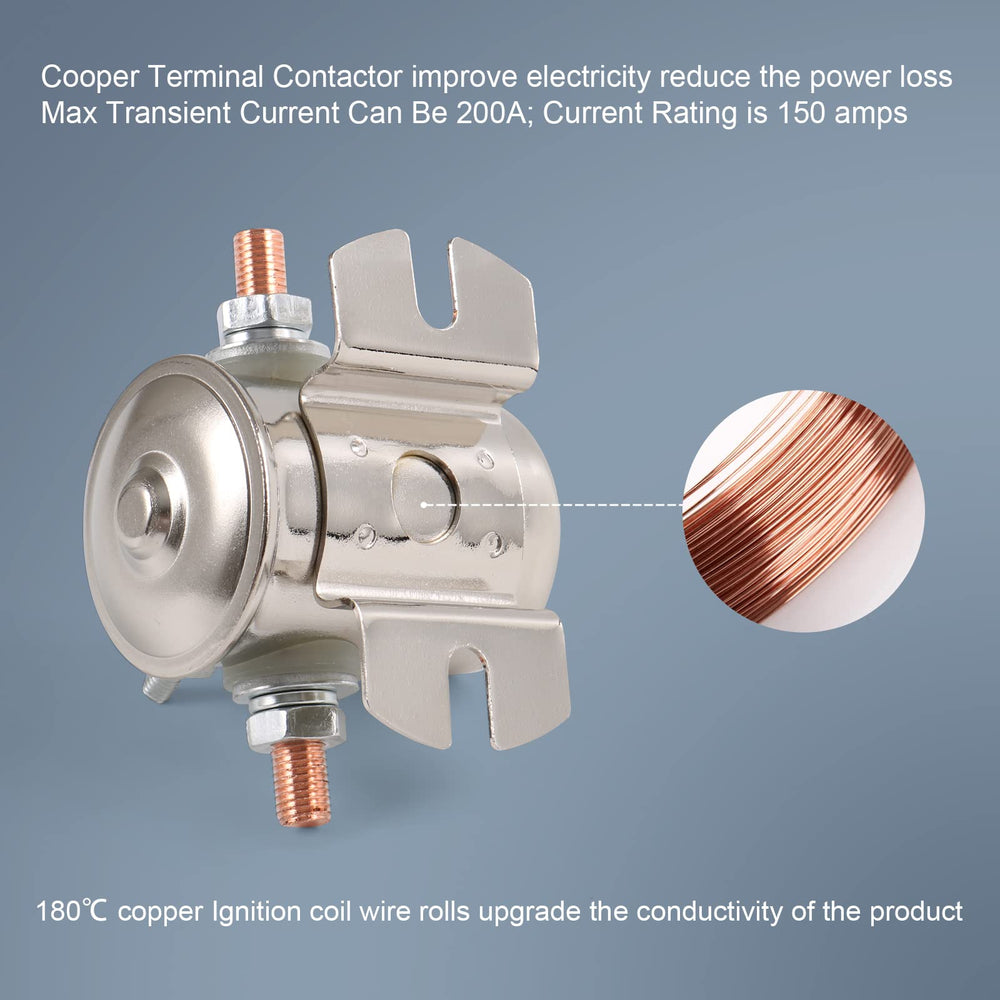

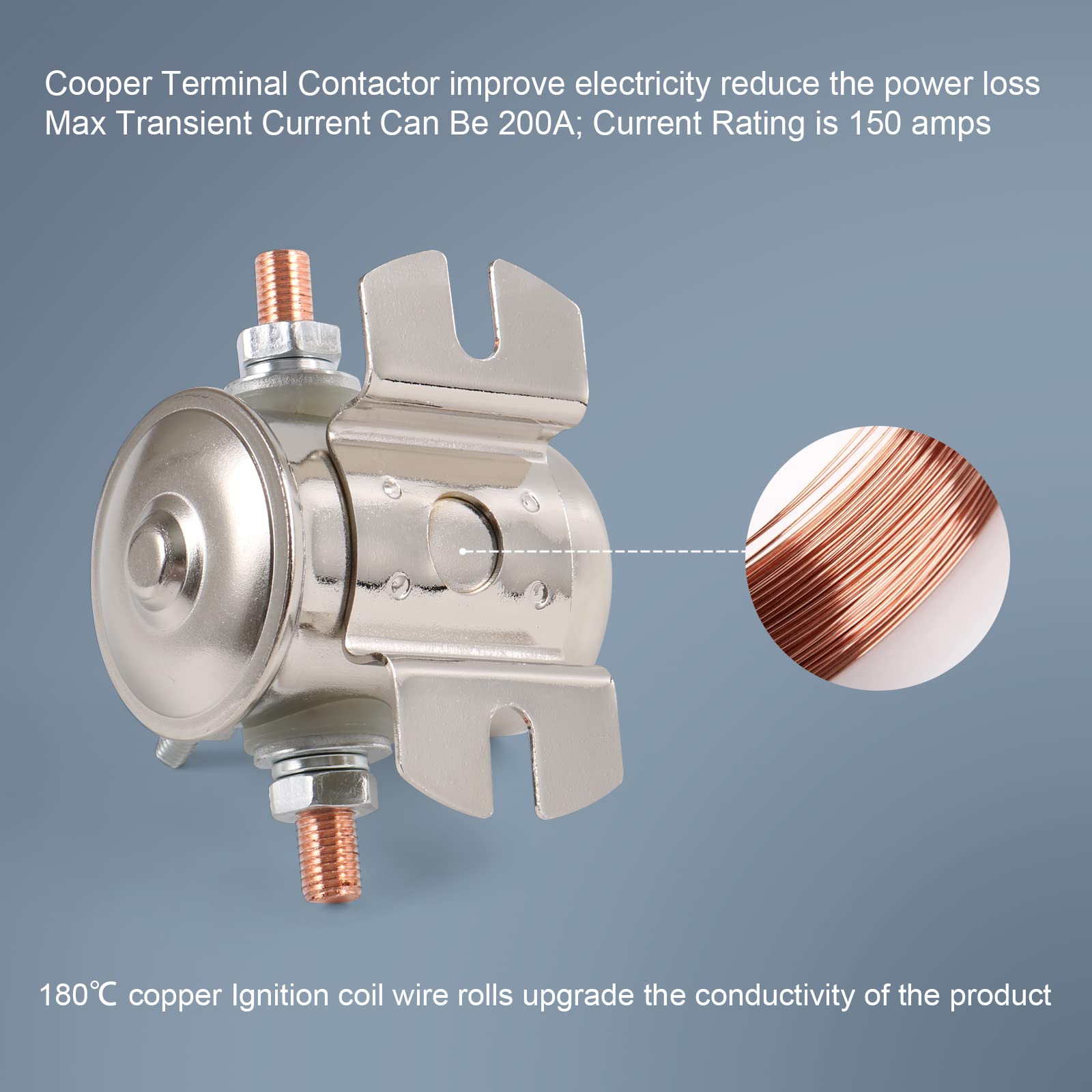

The solenoid comes in a sealed unit with a nickel-plated outer shell, helping guard against moisture and corrosion in challenging environments. The coil is wound with high-temperature copper wire rated up to 180°C, contributing to steady performance under demanding cycling and exposure conditions. This combination supports durable operation in boats, outdoor machinery, and rugged work sites.

• 4-terminal configuration with 2 copper points for solid, reliable connections
• Normally Open (NO) contact with 24VDC coil; SPST single circuit
• 5/16-inch -24 threaded mounting for secure installation
• Sealed design with nickel-plating for corrosion resistance

Duty, performance, and practical use

While built for continuous duty, real-world use benefits from mindful cycling to manage heat. In typical scenarios, running around 80A with short, controlled on-times followed by longer cooling breaks helps maintain stable operation. The unit supports short bursts up to 150A and brief transients up to 200A, offering flexibility for peak demand without overtaxing the system.

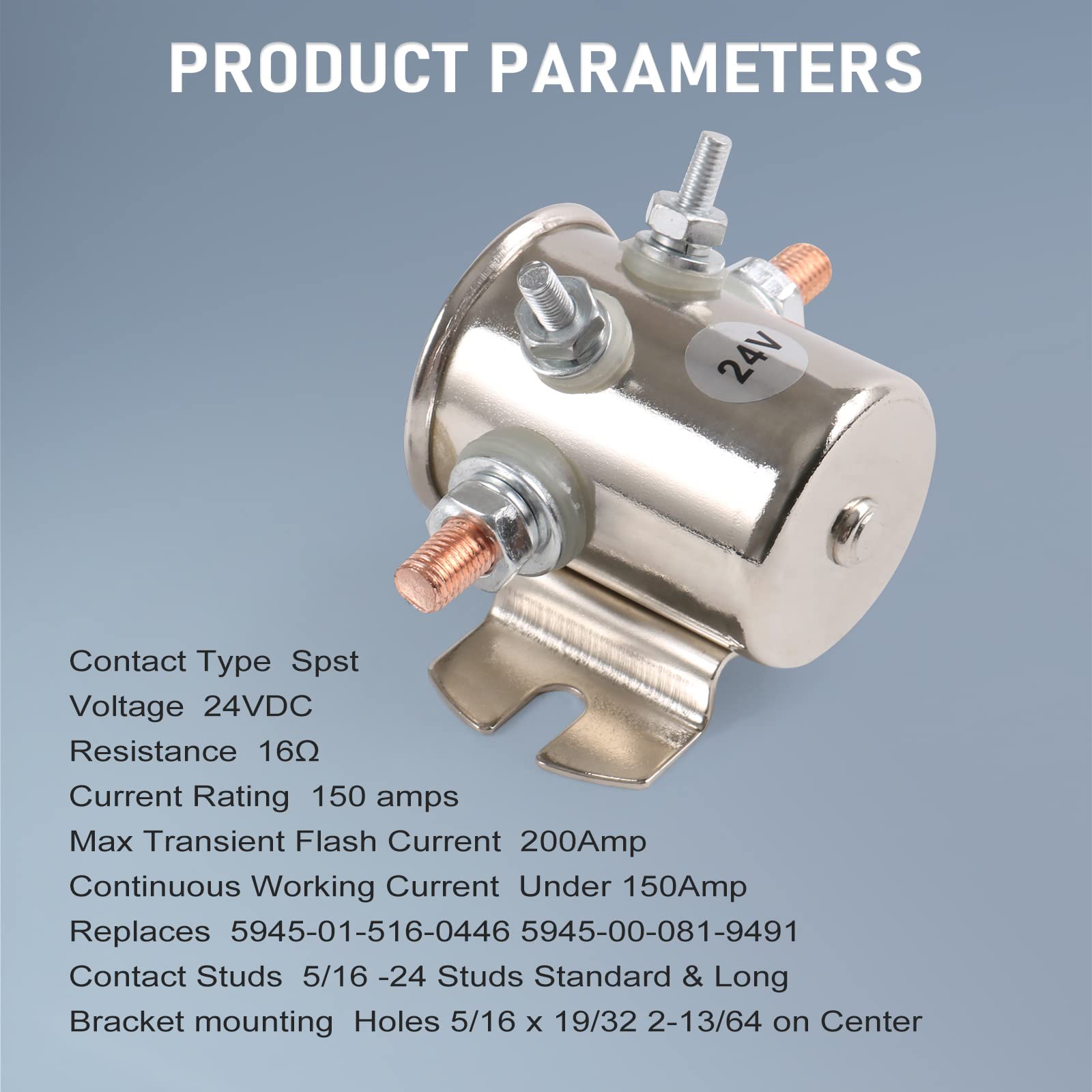

• Max transient current: 200A; rated current: 150A
• Continuous operation guidance: approximate 5 minutes at 150A, with cooling breaks afterwards
• Practical duty rhythm: around 80A with 10 seconds on / 30 minutes off as a reference

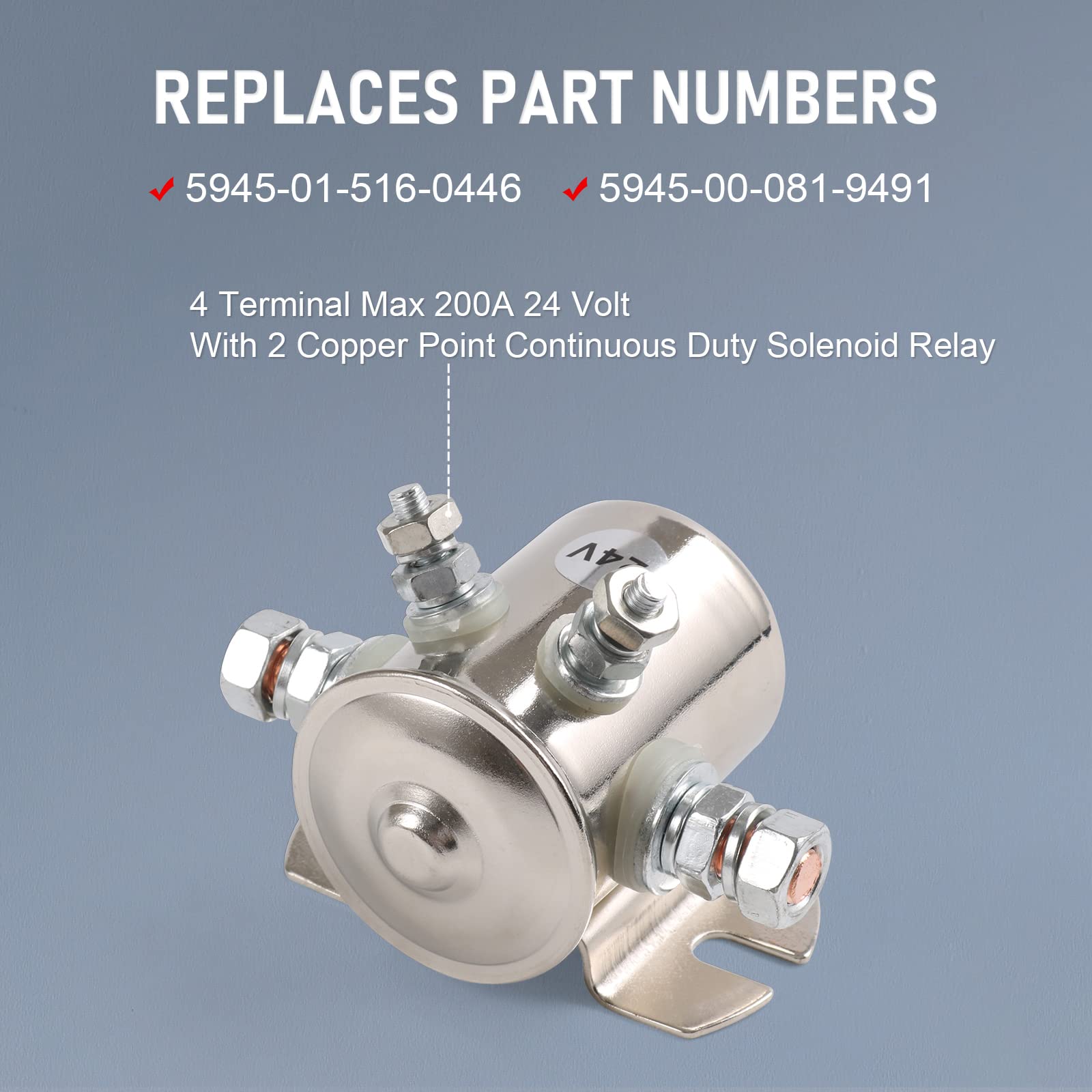

• Compatible replacement parts include 5945-01-516-0446, 5945-00-081-9491, and 0662565200754

Where this solenoid shines

Its combination of nickel plating, a sealed shell, and a high-temperature copper winding makes it well suited for ships, hydraulic systems, winches, golf carts, military vehicles, and factory machinery. This is a versatile relay that can support a variety of demanding switching tasks while staying protected from the elements.

Note: This solenoid is described as a start solenoid in some setups; for continuous duty, plan operation with deliberate breaks to prevent overheating. Refer to typical current levels and cooling recommendations to tailor cycling to your specific installation.
