Lisle 20610 Inline Spark Tester – Visual Ignition System Diagnostics

Visual ignition check in seconds

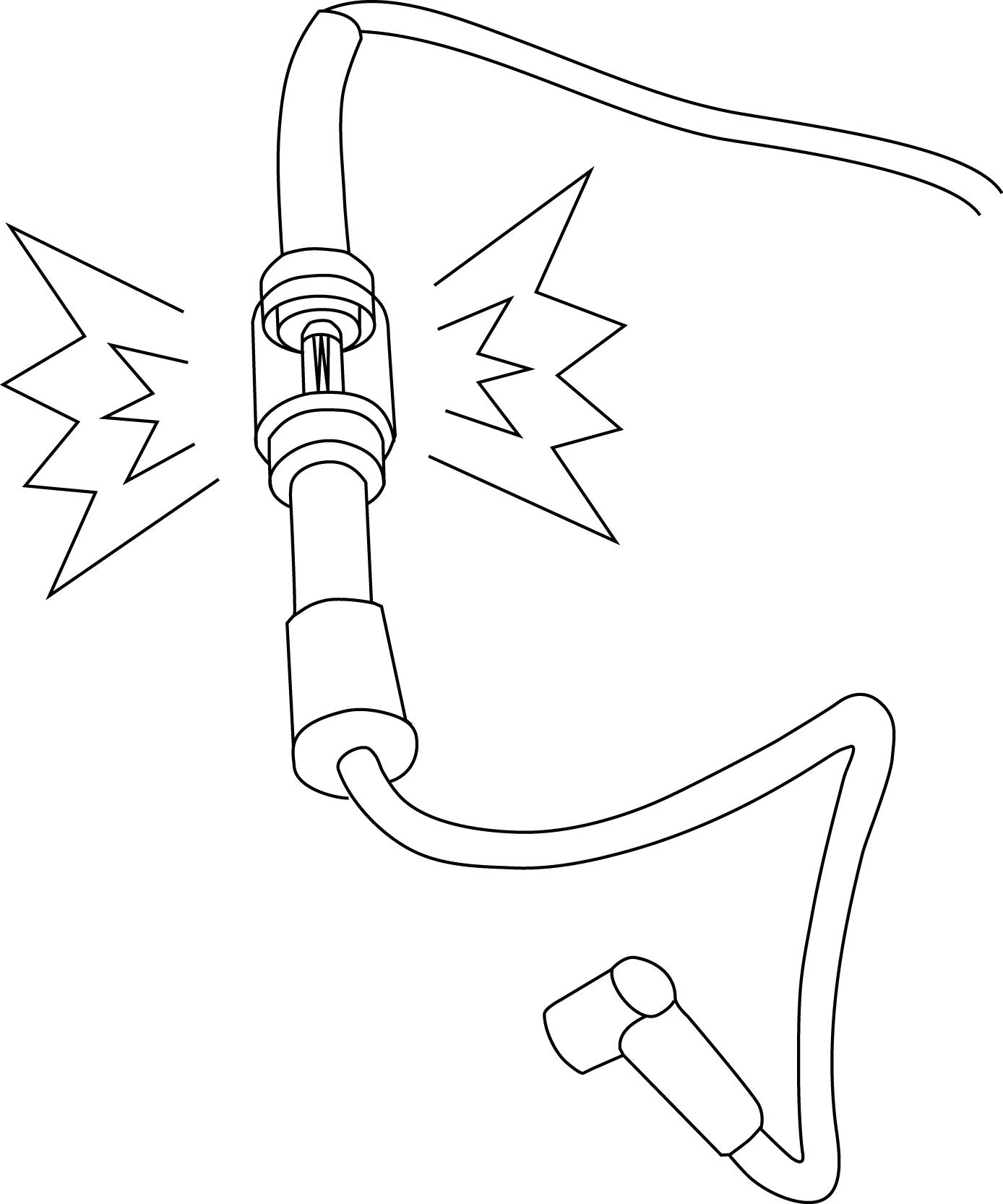

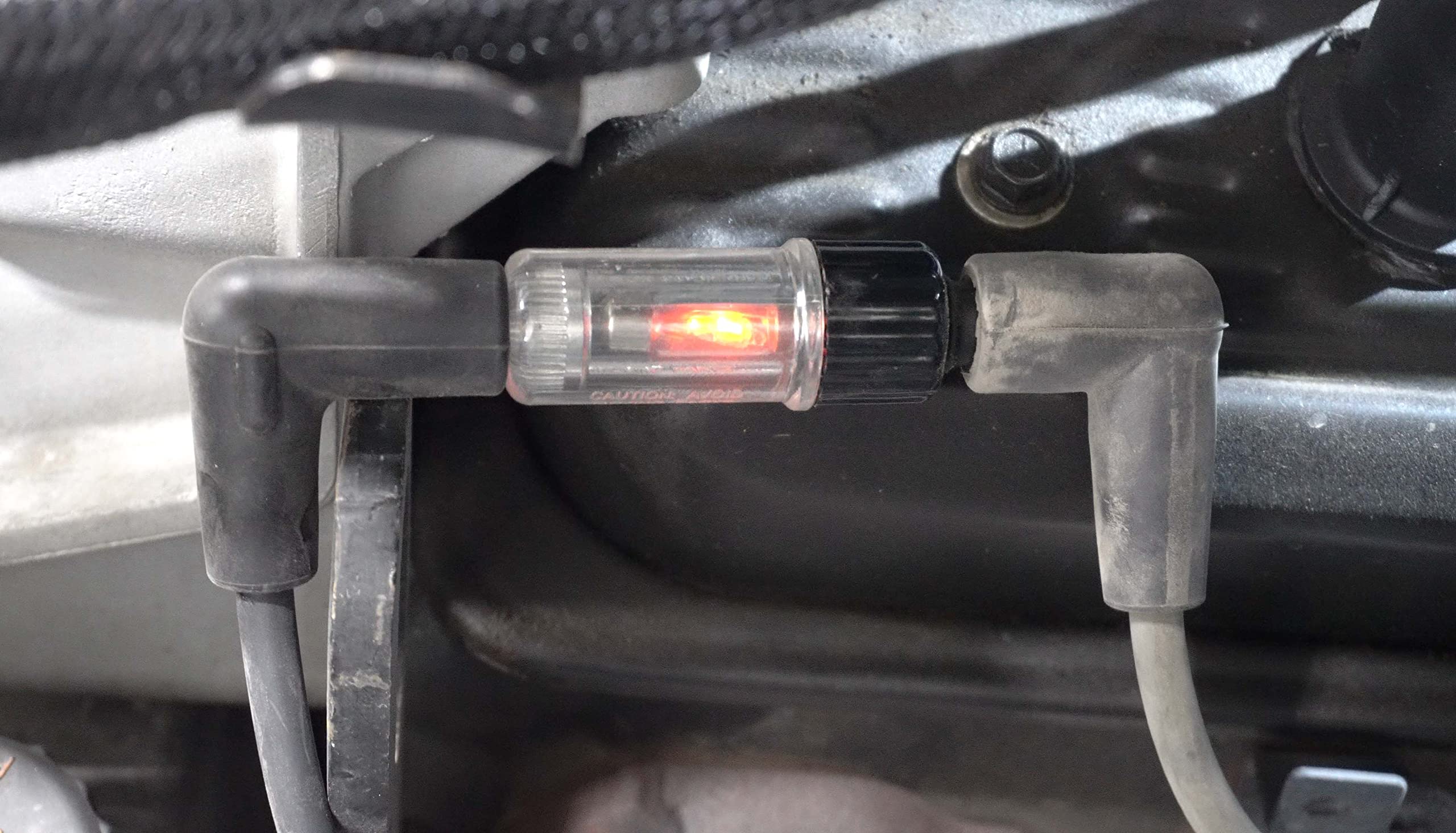

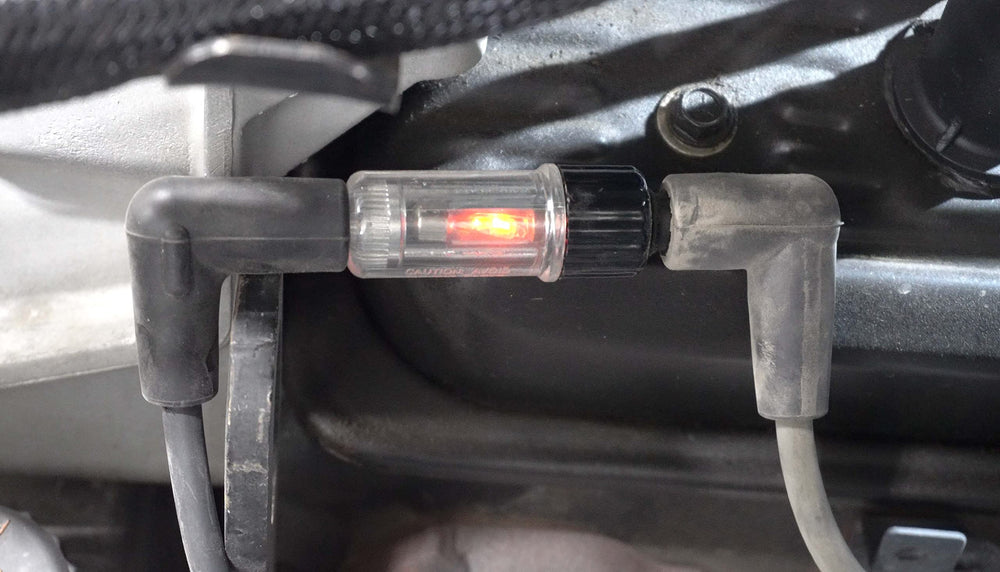

The Lisle 20610 Inline Spark Tester provides a quick, visual way to assess the ignition system while the engine is running. By placing the tool between the spark plug and the plug wire, you can observe a mirror image of the ignition spark, offering an intuitive cue about the system’s activity without taking apart components.

How it works

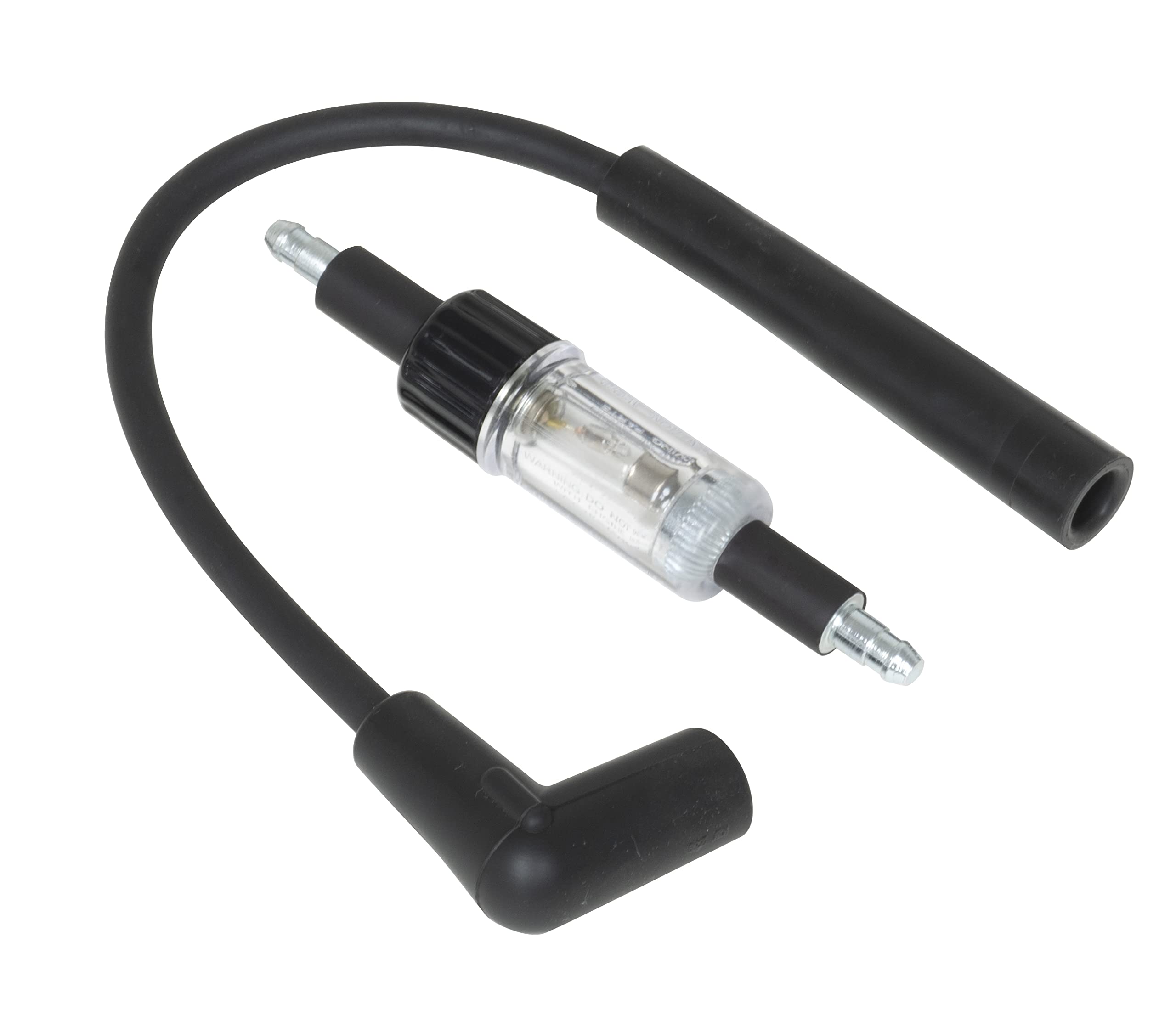

The design is deliberately flexible with a double-ended boot: straight on one end and a 90° boot on the other. This lets you adapt to different spark plug boot geometries, so you can get a clear view of the spark in a variety of engine layouts. When the engine runs, the tool flashes a clear reflection of the ignition event, helping you spot irregularities that might suggest a misfire or a component that could benefit from testing.

• Gives a visual check of the ignition system by showing a mirror spark
• Compatible with a wide range of ignition configurations and engines
• Double-ended design with a straight boot and a 90° boot for versatile fit
• Engine running spark visualization provides real time insight without disassembly
• Compact, easy to carry and straightforward to use on the vehicle

Why DIYers and pros use it

This tool is a practical aid for routine maintenance, troubleshooting, or quick diagnostics on the road or in the shop. It supports a non invasive check to confirm spark presence, assess consistency, and guide further testing. While it does not replace parts testing, it gives a helpful first look that can save time and reduce guesswork during troubleshooting.

• Supports quick checks during routine maintenance or troubleshooting
• Helps identify obvious ignition faults without disassembly
• Lightweight and durable for on vehicle use and transport

Patent reference 6,714,015 underscores a design focused on fast, visual feedback. Use as a companion to more thorough diagnostics to build confidence when assessing ignition health.
