Partsam 2x Red/White 39-LED Stop Turn Tail Stud Lights – Hardwired Replacement for Jeep CJ YJ JK, Truck, Trailer, Boat, RV
- £50.89
- £50.89
- Unit price
- per
Couldn't load pickup availability
Free UK Delivery on All Orders
Free Returns
Description
xOverview

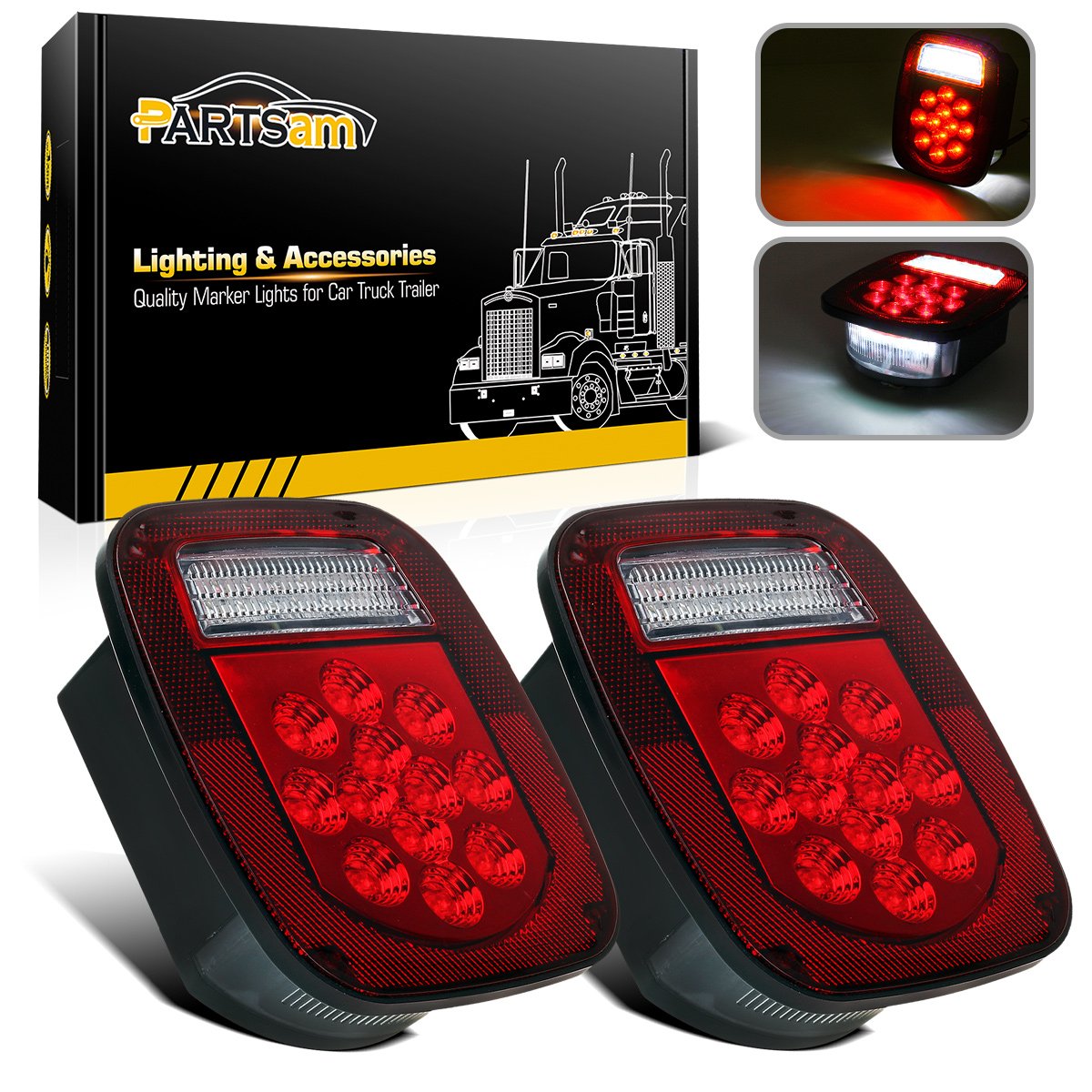

The Partsam 2x Red/White 39-LED Stop Turn Tail Stud Lights are designed as a versatile, hardwired replacement for a wide range of 12V vehicles, including Jeep CJ/YJ/JK models, trucks, trailers, boats, buses, vans, and RVs. The square housing delivers a modern, low-profile look while providing bright, dependable signaling in challenging conditions. This is a DIY friendly option for builders who want to tailor their lighting setup without a factory harness. Please note: this unit is not plug and play; wiring will be required to match your vehicle’s configuration.

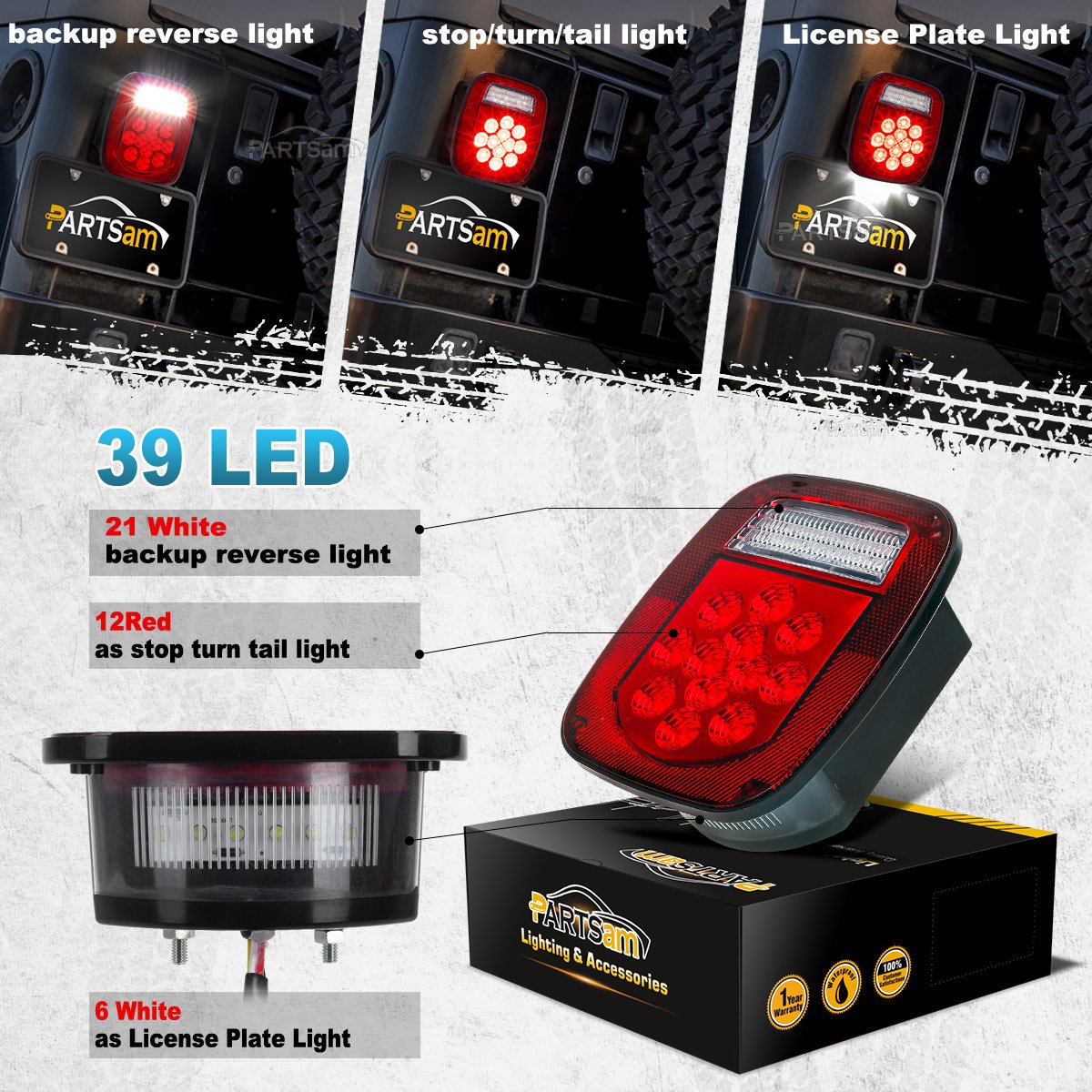

LED makeup and signaling coverage
- 12 red LEDs deliver clear brake, turn, and tail signaling for strong visibility in daylight or night driving.
- 21 white LEDs serve as reverse lights, helping illuminate the area behind the vehicle when backing up.
- 6 white LEDs provide license plate illumination, keeping plate visibility clear after dark.
Durability, build, and fit
- Square, compact housing is designed to fit a variety of mounting spaces while maintaining a clean profile: 170 mm by 145 mm by 60 mm with a 150 mm wire lead.

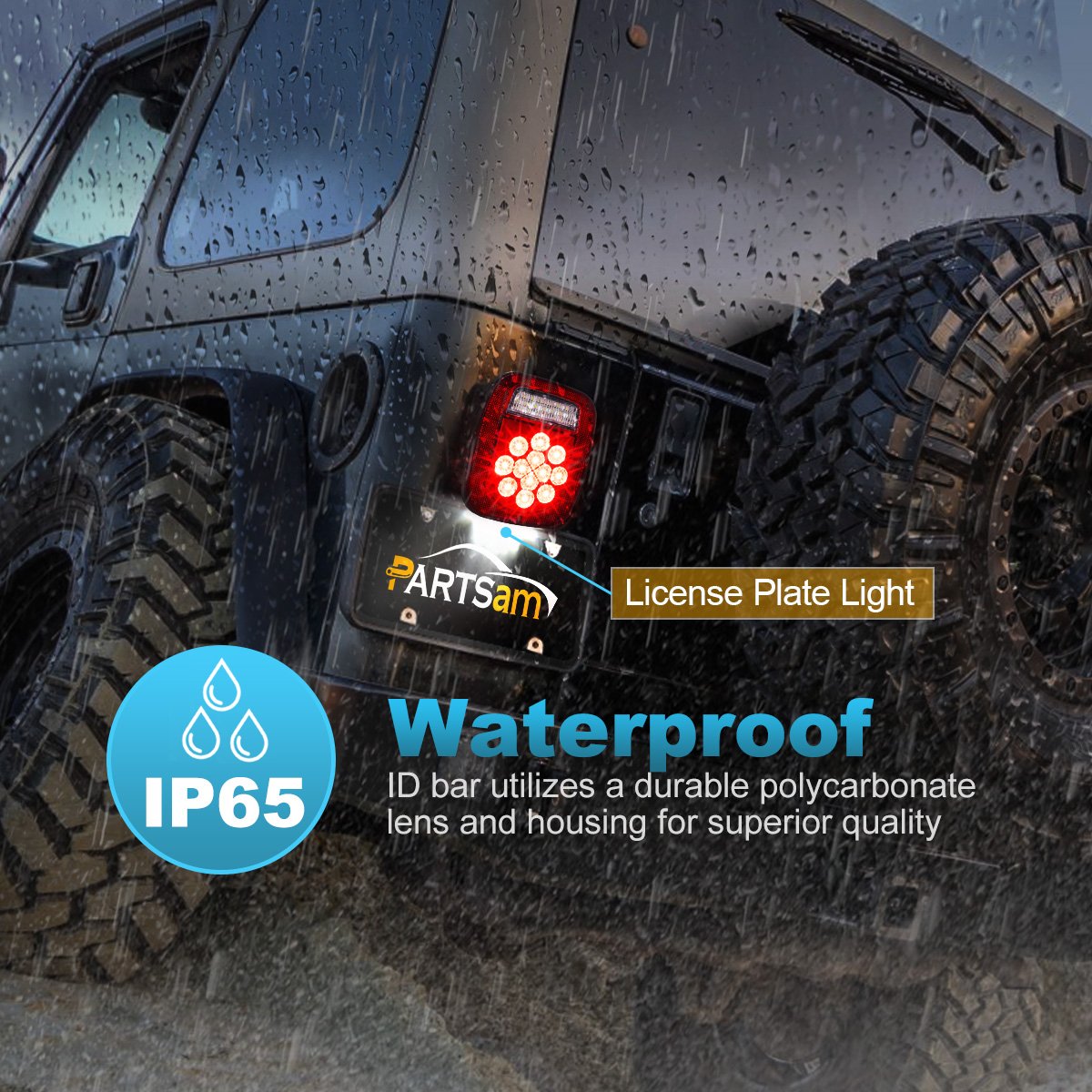

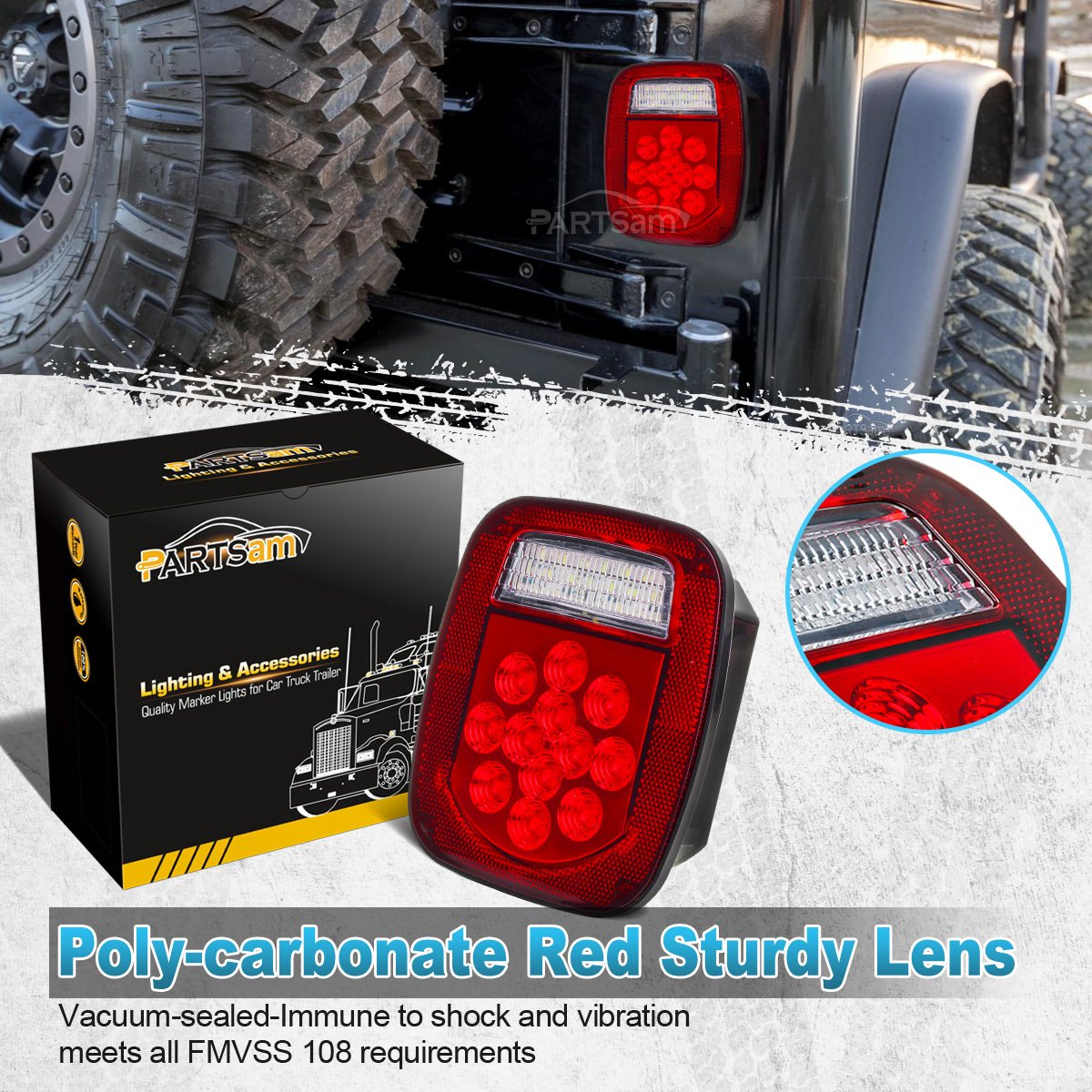

- Partsam lights are described as impact resistant and water-tight sealed, helping them withstand road debris, moisture, and routine washes.
- The design emphasizes direct wiring with minimal connectors to reduce corrosion risk and weather ingress over time.
Wiring, installation, and usage notes

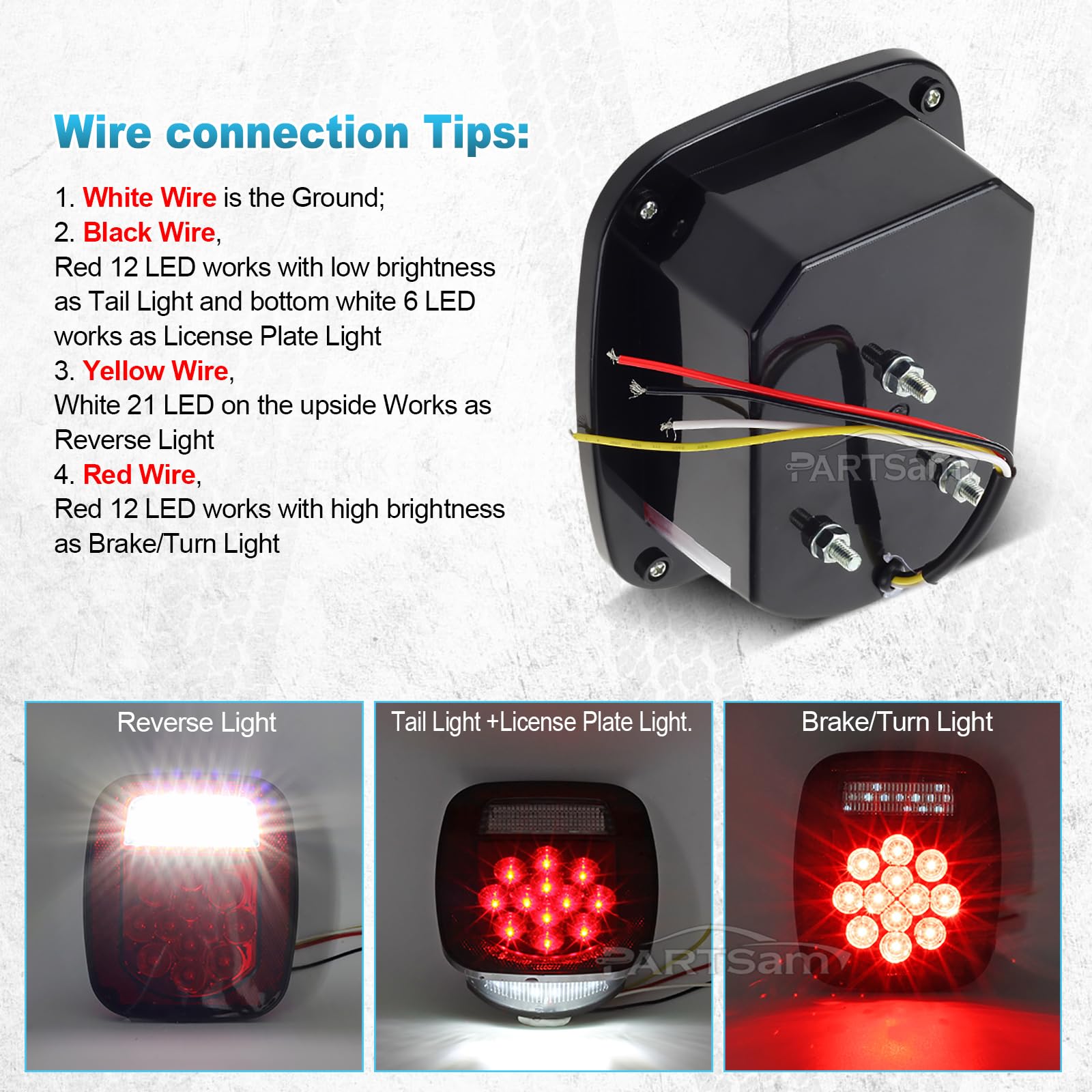

- White wire is the ground; black wire and red 12 LED set operate as tail and brake signals with adjustable brightness; yellow wire and white 21 LED set power the reverse lights.
- Bottom red LEDs provide high brightness for braking and turning when wired correctly; this is intended for DIY integration rather than a plug-and-play harness.
- Plan for mounting space and ensure a secure seal around the unit to maintain weather resistance in outdoor or off-road environments.
Why consider this Partsam lighting option

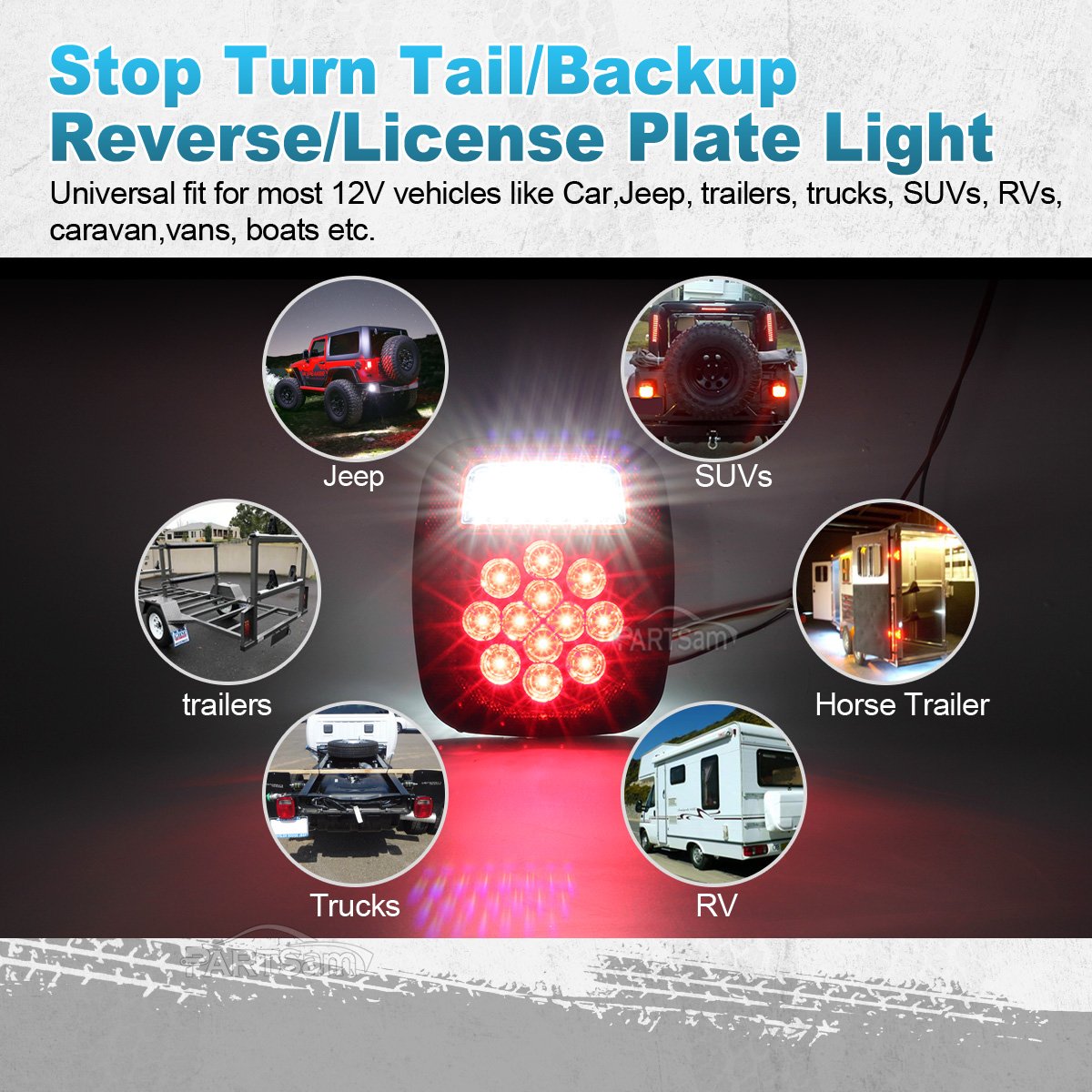

This two-light kit offers a comprehensive signaling package with dedicated reverse and license plate illumination, compatible with a broad range of 12V vehicles. The universal fit and DIY wiring approach appeal to builders who value flexibility in custom applications, from Jeeps to trailers and beyond.
FAQ
Q: Is this Partsam light compatible with Jeep CJ/YJ/JK and other vehicles?
A: Yes, Partsam offers a universal 12V fit for trucks, trailers, boats, and RVs, with DIY mounting for Jeep YJ/J-K.
Q: How should I wire and install the light?
A: The kit is not plug-and-play. Connect white to ground, black/red for tail and brake, yellow/white for reverse; secure wiring and housing.
