Partsam 5x2 LED Marker Light – Red 2-Inch Cab Panel with 9 LEDs, Grommet & Pigtail

Overview

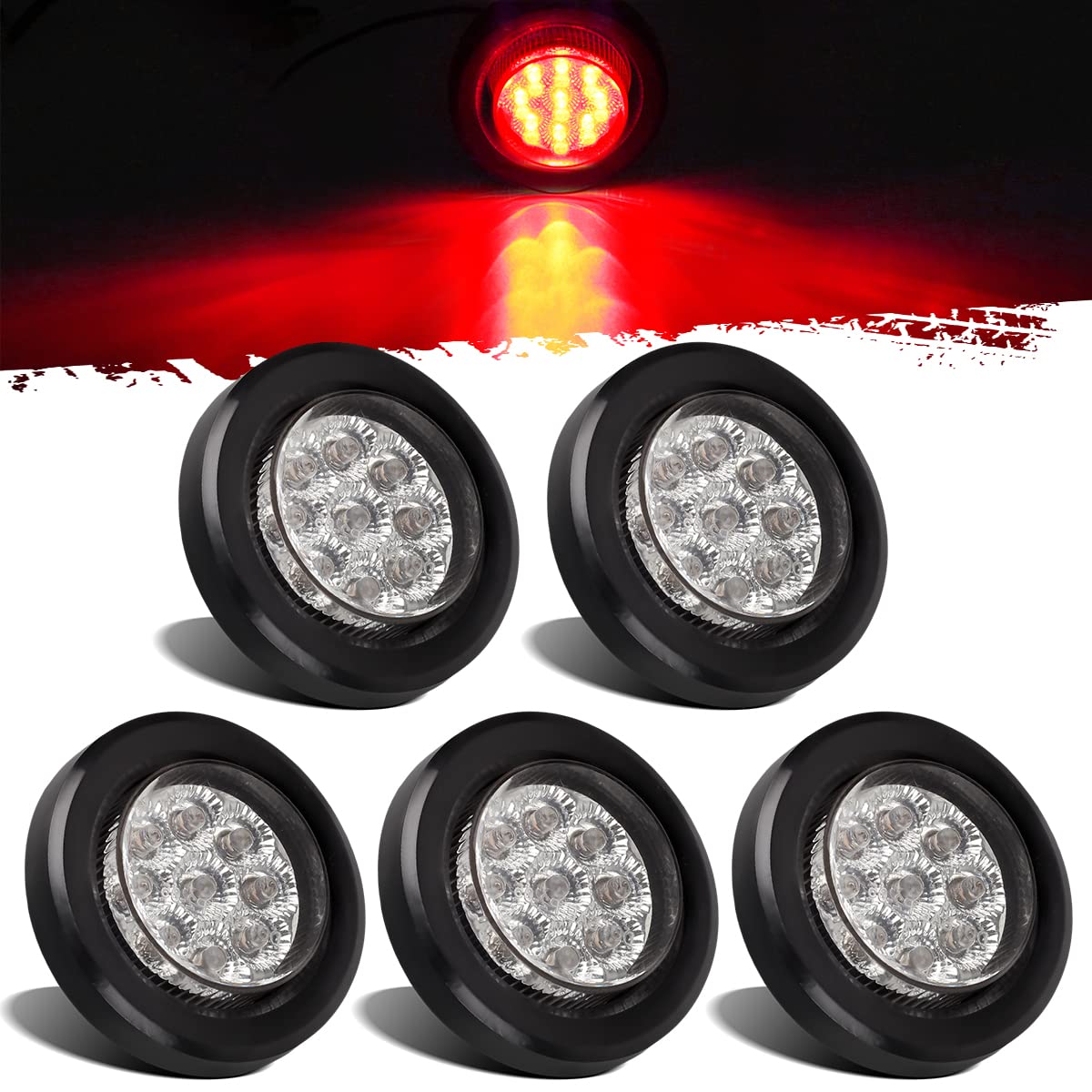

The Partsam 5x2 LED marker light provides a compact, high-visibility signaling solution for trailers, trucks, RVs, campers, and more. A red LED cluster sits behind a clear lens, delivering a bright, even glow that helps designate the vehicle’s side profile along its length. This unit is designed for quick installation with a grommet and a pigtail, and it is intended for use in a 2-1/4 inch mounting hole.

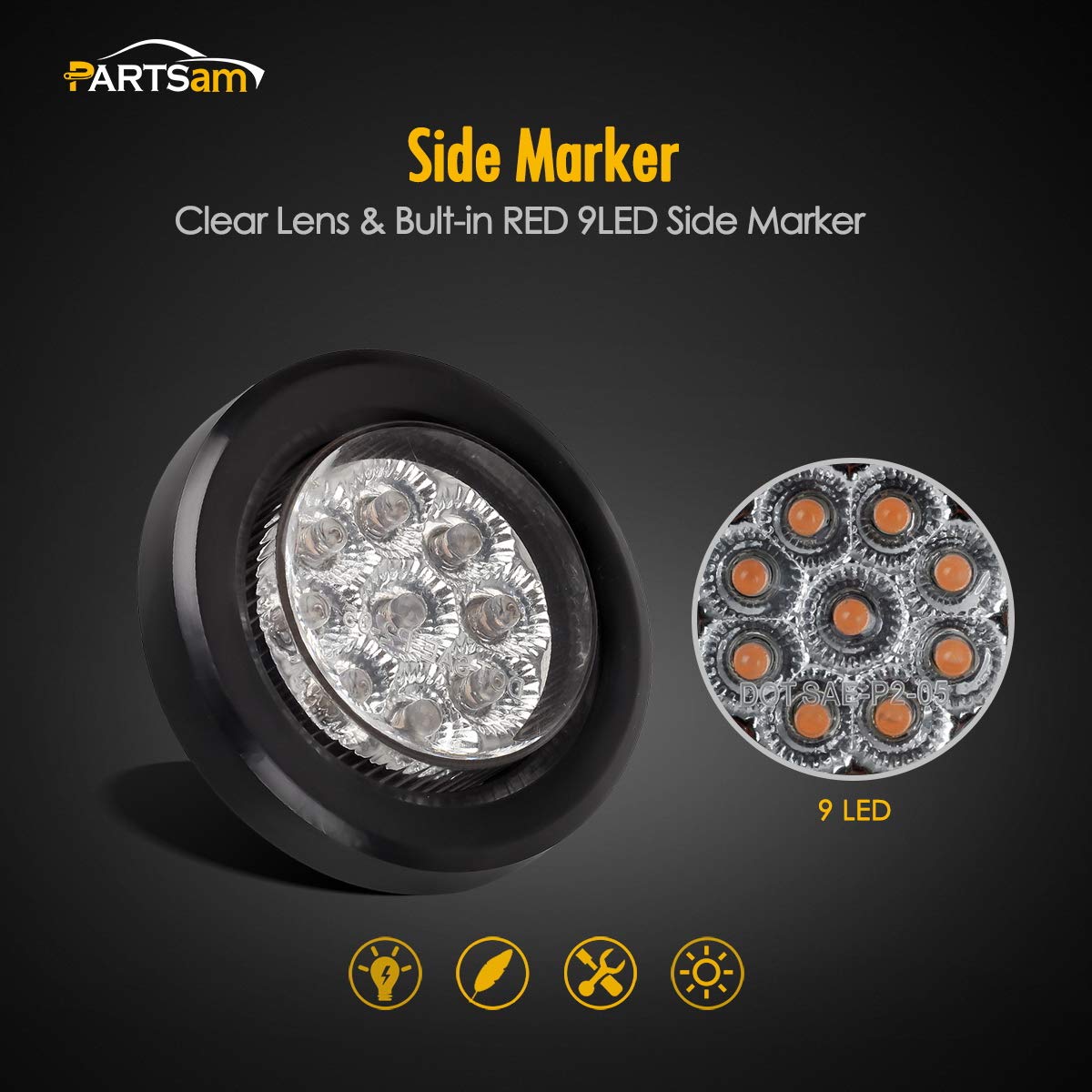

Inside, you’ll find a configuration built around 9 high-power LEDs. The round, red light pairs with a clear lens to create a clean, modern look that complements a wide range of vehicle colors and finishes. The design supports multiple signaling roles in one compact package, making it a practical upgrade for aging markers or new builds alike.

What makes it stand out

• Clear lens with a red signal helps maintain daylight visibility and nighttime signaling intent.

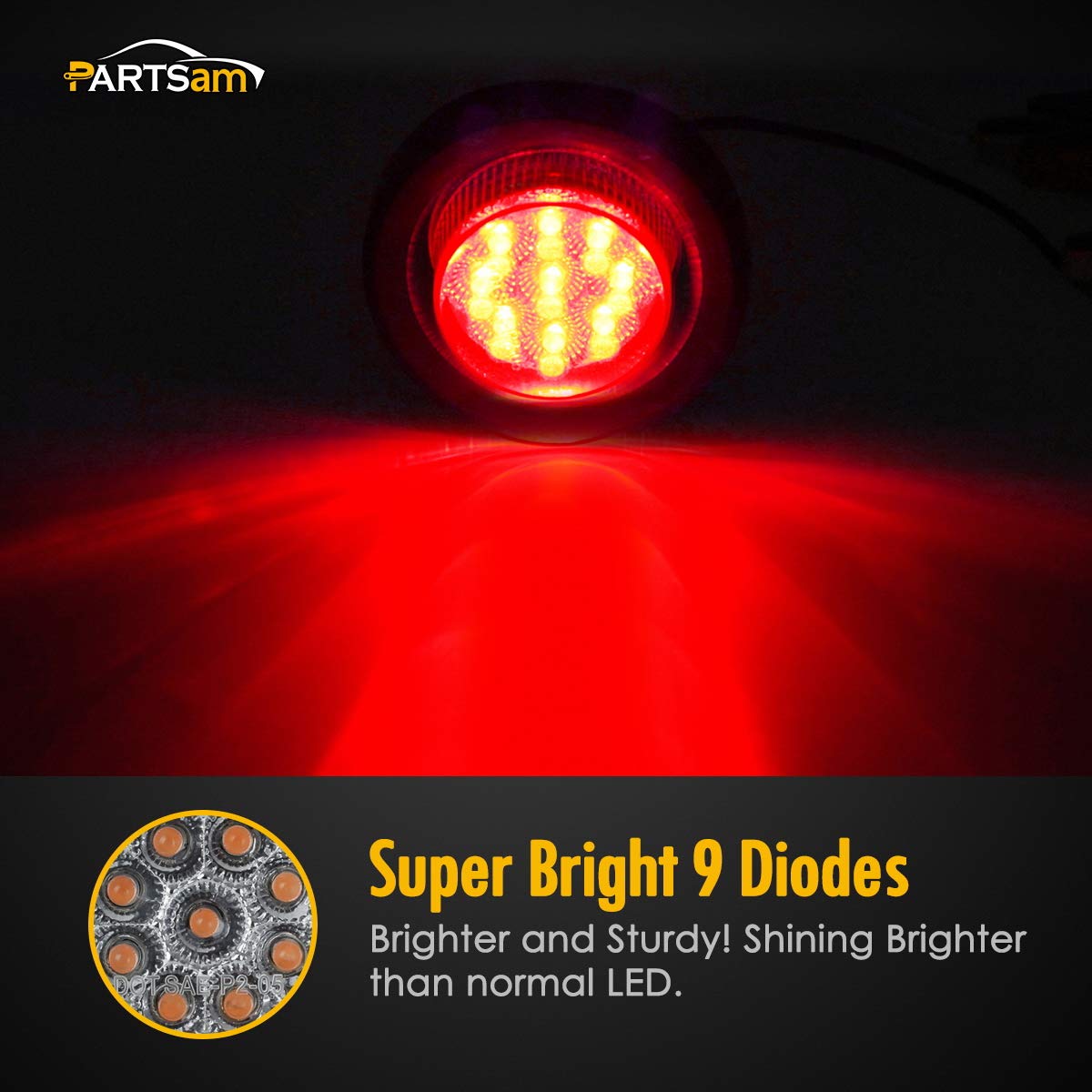

• Nine powerful LEDs deliver a steady, legible glow that’s designed to stand up to road conditions.
• Grommet plus pigtail wiring enables a simpler install and cleaner wiring routes on a variety of vehicles.

Applications and real-life use

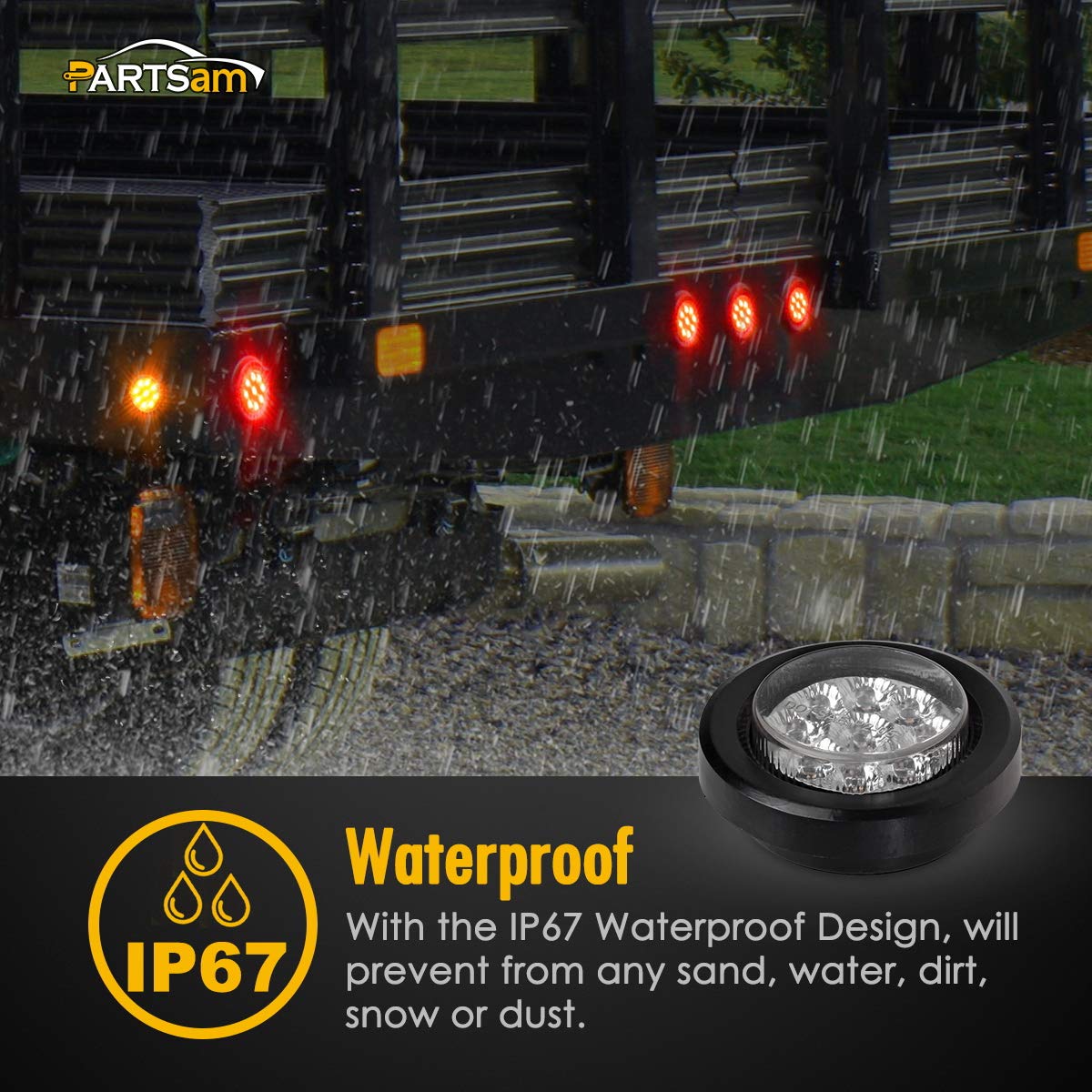

This marker light is commonly installed on heavy-duty trucks, travel trailers, horse trailers, flatbed trailers, golf carts, tractors, camper trailers, cargo trailers, motorhomes, and RVs. The multi-function behavior supports side marker and clearance signaling, as well as an ID light when needed, giving you flexible signaling options on the road.

Wiring, fit, and installation

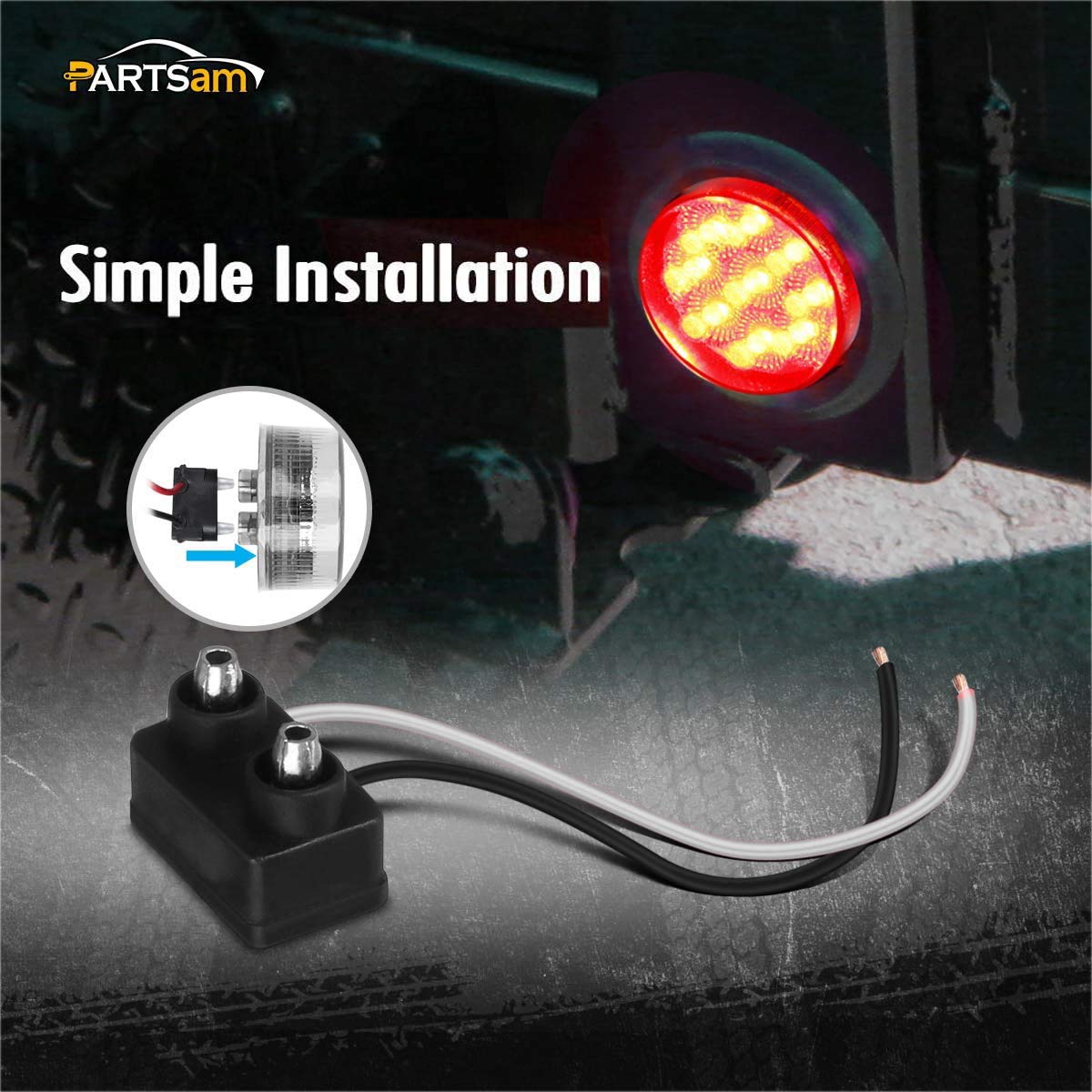

Wiring follows a simple polarity: the white wire is the ground, and the black wire is the positive. For installation, drill a hole about 2-1/4 inches in diameter and press the light into place. The included grommet helps seal the opening and protect the wiring against the elements, contributing to a neat, weather-resistant finish.

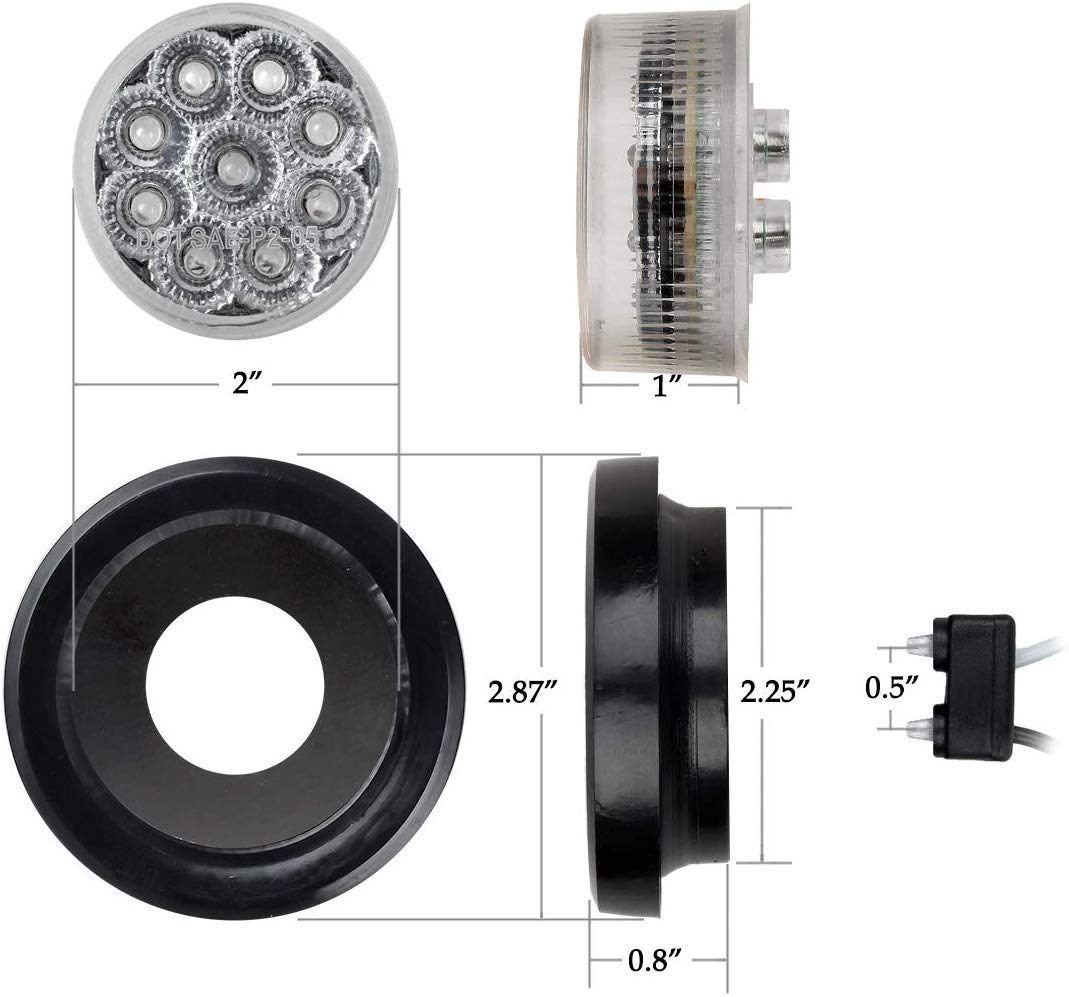

• Hole size to install: roughly 2-1/4 inches.
• Ground: white wire; Positive: black wire.
• Includes grommet and pigtail for straightforward wiring.

Specifications and quality

This is a brand-new aftermarket product built to meet professional specifications. It’s designed for durable performance across a range of vehicle types and operating conditions, providing dependable signaling without over-promising results. Consider it a versatile upgrade option when you’re refreshing or outfitting trailers or trucks for enhanced visibility.
