RiAiCiING LS AC Bracket Kit for Sanden 508 — Chevy GM LS Engines

Overview

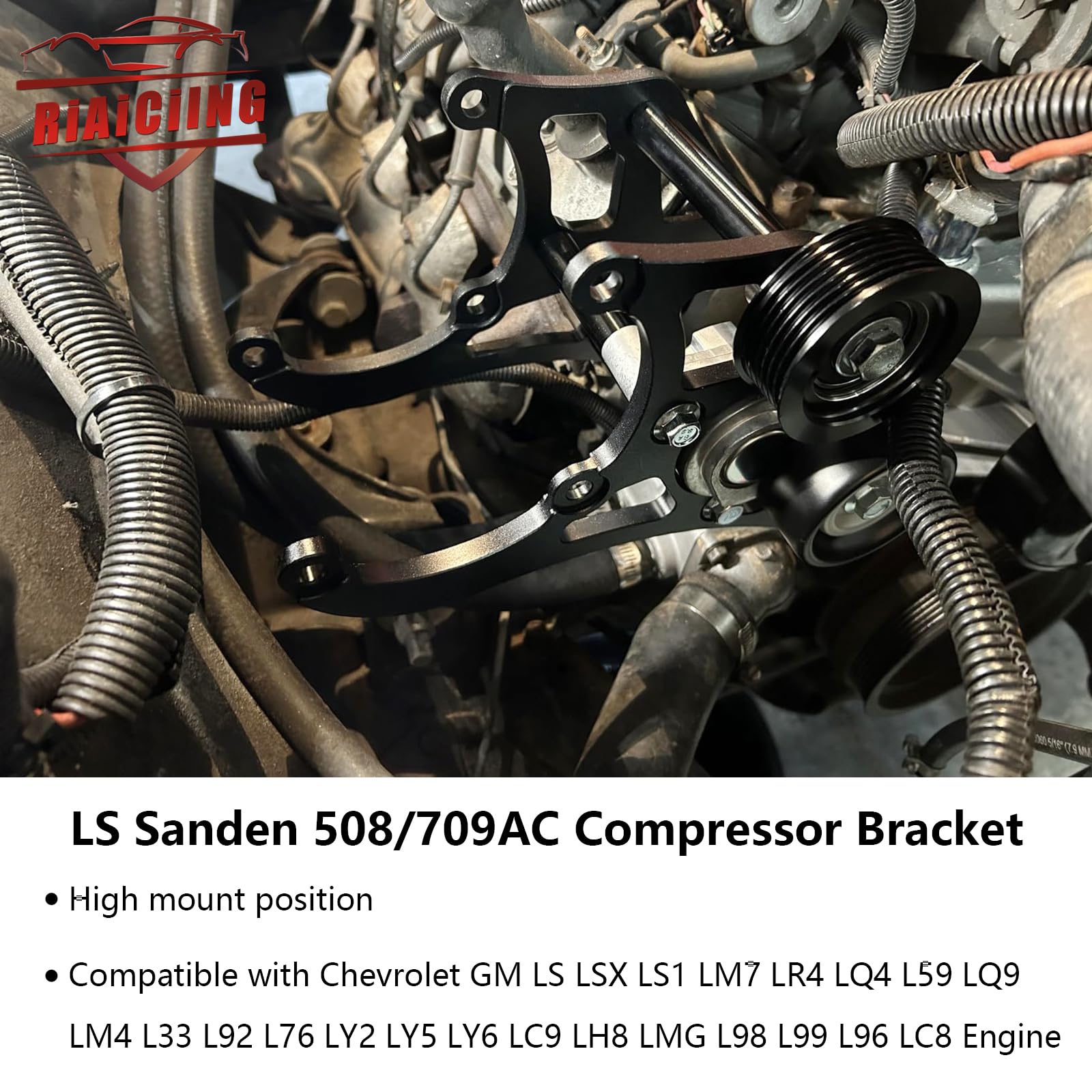

The RiAiCiING LS AC Bracket Kit relocates a Sanden 508 or Sanden 709 compressor, placing it out of the way of frame rails, motor mounts, and fender walls. It is designed for a wide range of Chevrolet GM LS engines, including LSX, LS1, LM7, LR4, LQ4, L59, LQ9, LM4, L33, L92, L76, LY2, LY5, LY6, LC9, LH8, LMG, L98, L99, L96 and LC8, among others. This setup helps you achieve a cleaner engine bay while preserving essential service access in daily driving or weekend projects.

Key benefits

• Relocates the compressor to free up space and improve clearance around frame rails and mounts.

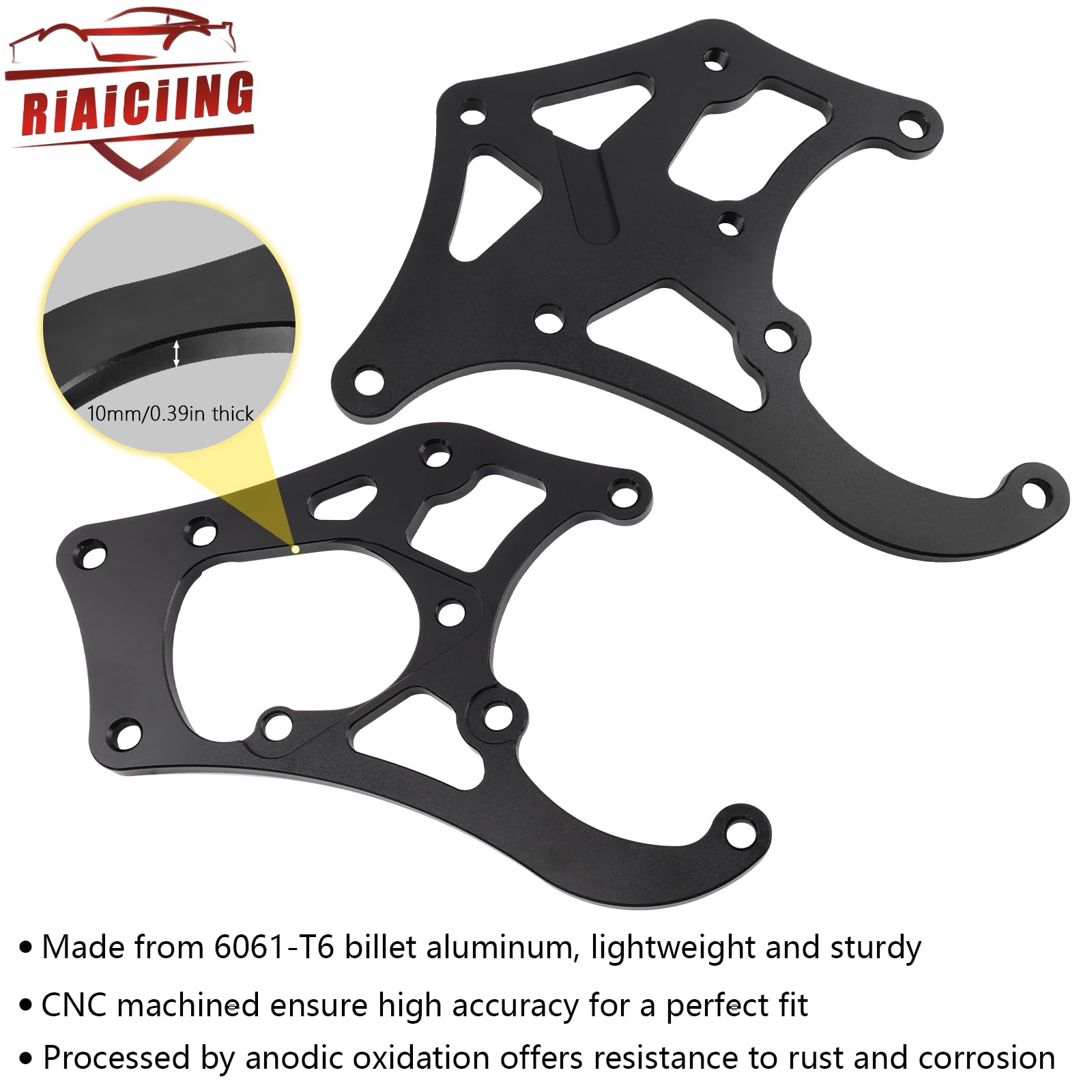

• CNC machined, ensuring high accuracy for a precise fit in a variety of LS builds.

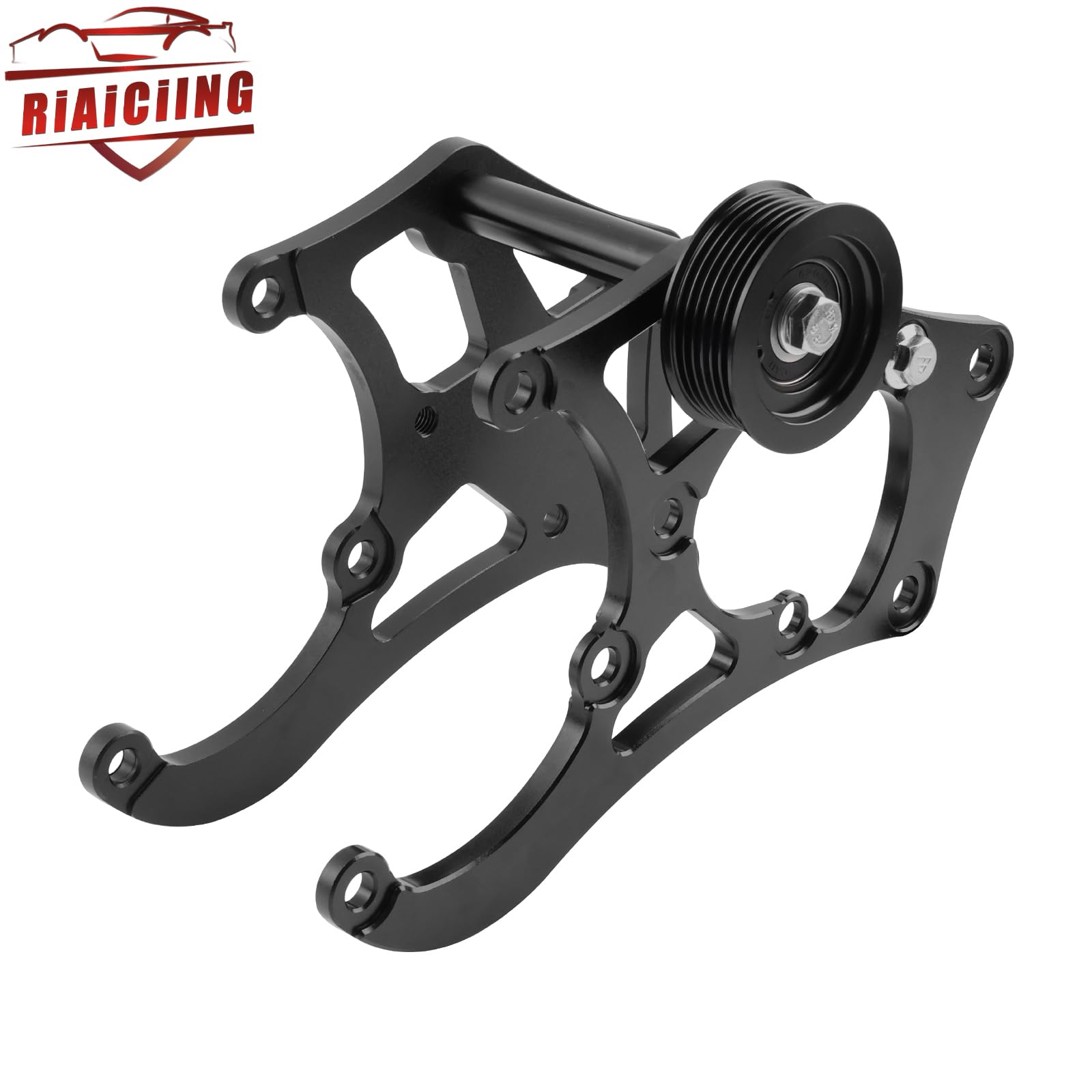

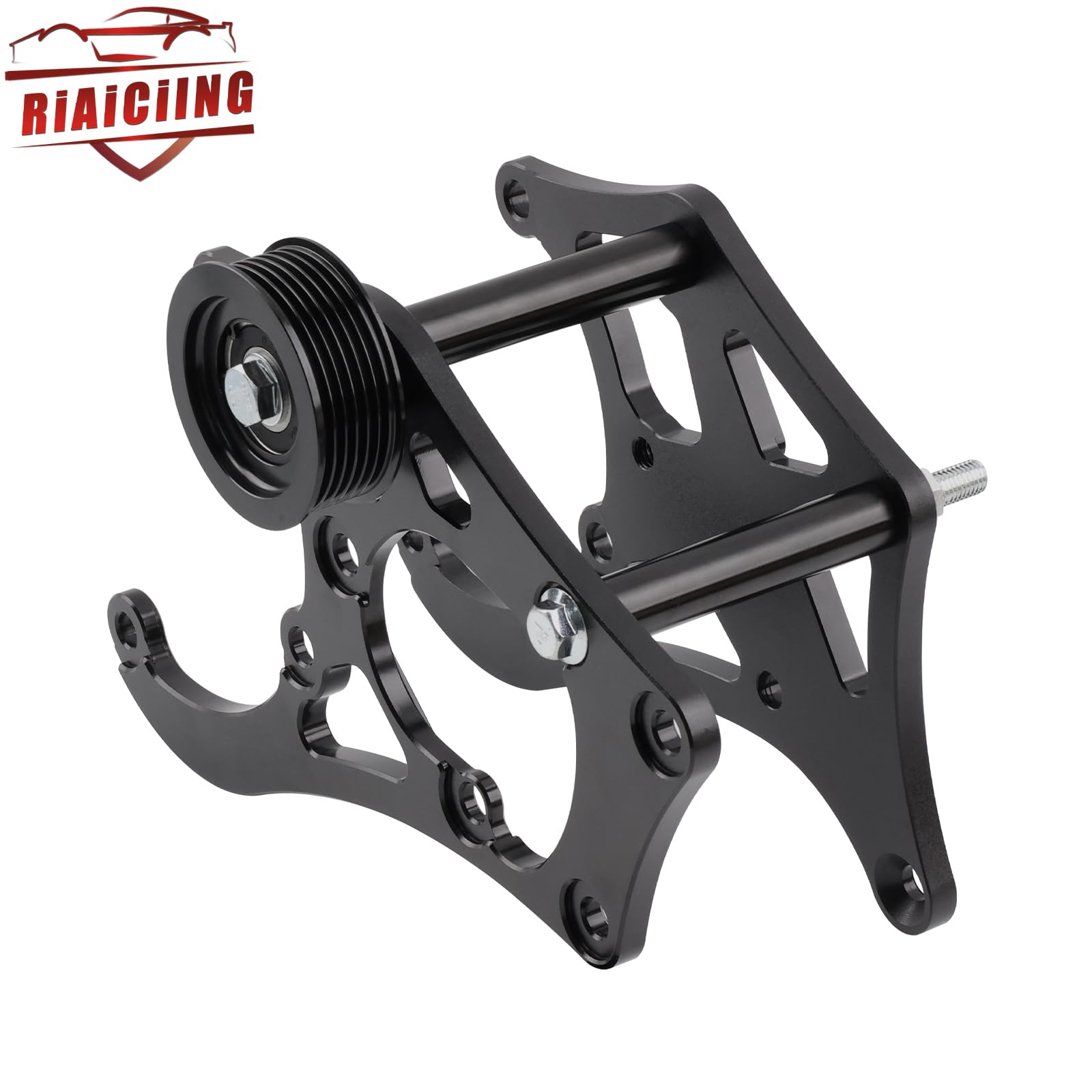

• Constructed from 6061-T6 aircraft aluminum with an anodized finish for strength and corrosion resistance.
• Compatible with Sanden 508 or Sanden 709 compressors, offering flexibility for different system configurations.

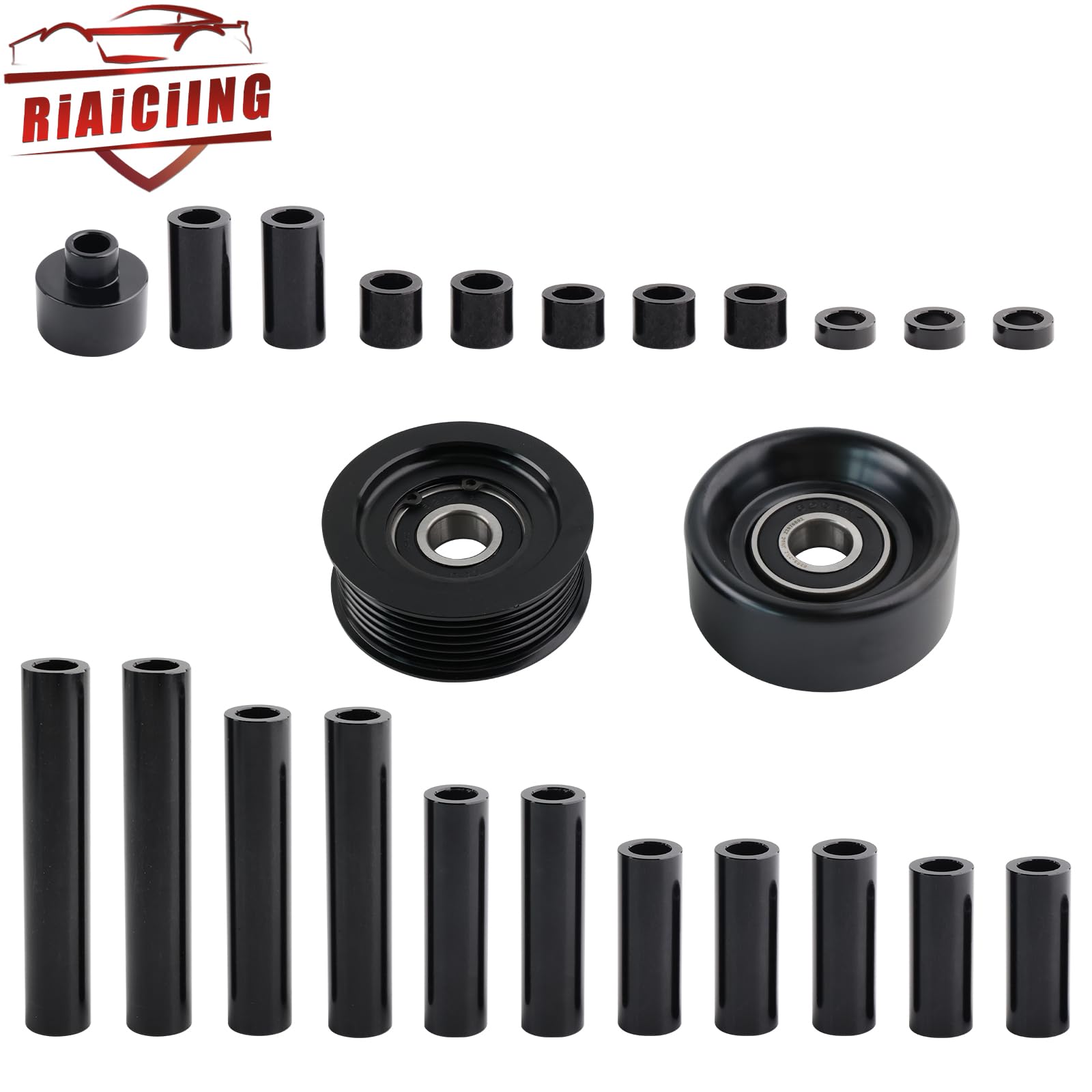

• Designed to support different belt and pulley setups, aiding belt routing and tensioning across multiple engine layouts.

What you may need

• 1998-2002 Camaro LS1 type belt tensioner part number 38195.
• LS Truck or LS3/L99 Camaro crank pulley and water pump, or an equivalent truck style setup.
• In some cases the idler pulley relocation bracket 551353 may be required to clear certain intake manifolds or factory brackets.
• Belt length considerations vary with the chosen alternator and bracket configuration: about 100 inch belt with standard alternator or 101 inch with larger alternators; or 113 inch belt with factory brackets, with longer ones for 145/160 amp alternators.

Quality construction and thoughtful design translate into a robust piece that supports reliable performance under various driving conditions. The bracket kit is designed for simple bolt alignment and a snug, nonflex fit, helping your installation look clean and professional.

Note that installation instructions are not included and professional installation is strongly recommended to ensure proper alignment and clearance in your specific engine bay configuration. This kit is intended to enhance installation options for LS engines and does not guarantee specific performance outcomes. It offers a practical path toward a tidy, well organized space for the AC compressor within a traditional LS build.
