RV Designer S247 Rocker Switch – 10A Illuminated SPST DC, Black with Red

Overview

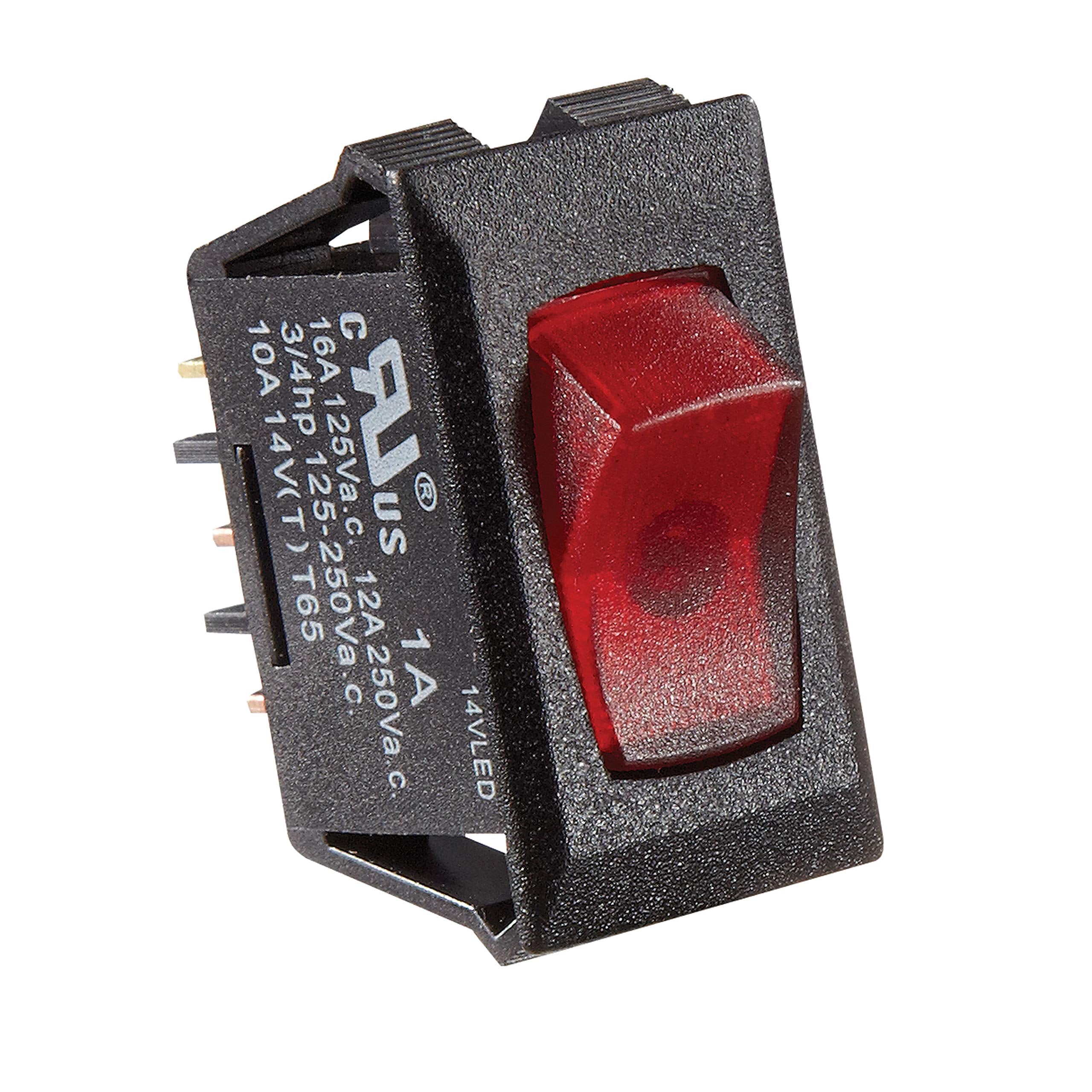

The RV Designer S247 rocker switch adds a compact yet dependable control to DC electrical setups. Its black housing and a red-illuminated indicator deliver clear status visibility, helping you quickly assess which circuits are active in your RV, boat, or off-grid system.

Built for universal fit, this switch is designed to integrate with a wide range of panels and layouts. It features a standard cutout and a three-terminal design, making wiring straightforward while keeping a clean, professional look inside dashboards, compartments, or appliance bays.

Key specifications at a glance

• 10A rating for mid-duty DC circuits
• Illuminated On/Off with a high-contrast indicator
• SPST (single-pole, single-throw) control for simple switching
• Cutout size: about 0.550 in x 1.125 in

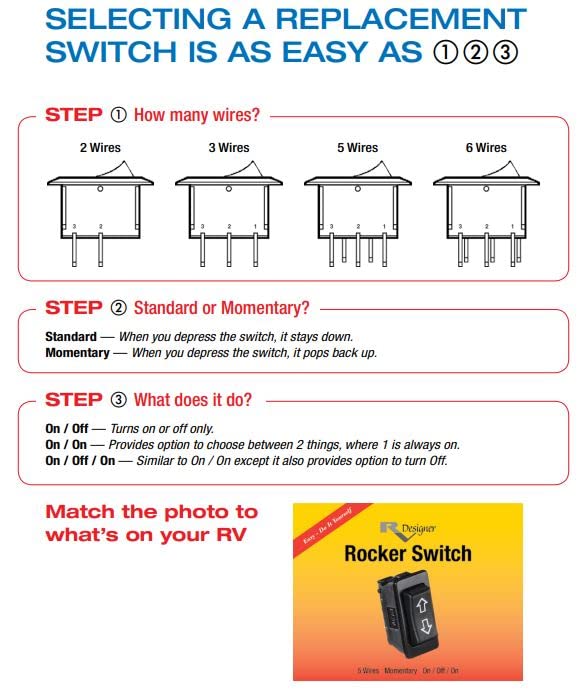

• Three terminals for flexible wiring options
• Universal fit to adapt to a wide range of panels and enclosures

Practical uses and scenarios

• Lighting circuits: switch interior or exterior lighting with a visible status indicator
• Water systems: control a water heater or pump with a compact, low-profile switch
• Appliance controls: suitable for DC-powered devices in mobile or marine setups

Why choose the RV Designer S247?

The switch combines straightforward operation with clear feedback, a small footprint, and reliable construction. Its illuminated status helps you confirm when a circuit is energized, while the three-terminal layout supports clean, flexible wiring. This makes it a practical choice for customized dashboards, compartments, or compact control panels without sacrificing a tidy appearance.

Note: This description highlights design attributes and typical uses; always verify compatibility with your specific panel cutouts and electrical standards.
