WOLFBOX USB-C Dash Cam Hardwire Kit 11.48ft — 5V/4A Continuous Power with Low-Voltage Cutoff

WOLFBOX 4A USB-C Hardwire Kit converts your vehicle’s 12V–24V power into a stable 5V/4A USB-C feed for continuous dash cam operation, including ignition-linked use and parking monitoring.

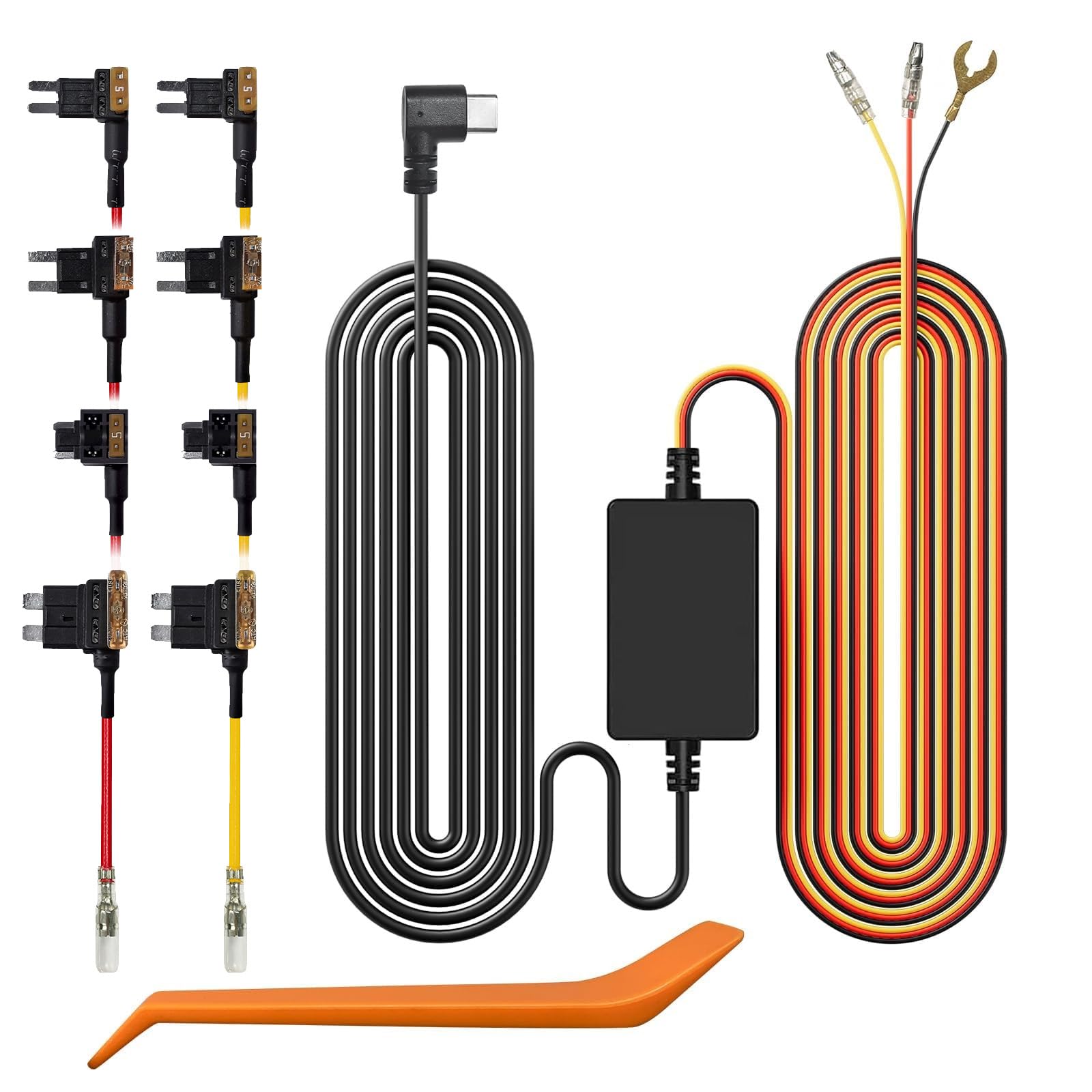

This hardwire kit is built to replace a cigarette-lighter adapter and give your WOLFBOX USB-C dash cam a clean, permanent power source. It supplies a steady 5V/4A output suitable for many mirror-style and single-unit dash cameras while hiding wiring for a factory-like installation. The harness totals 11.48 feet to reach typical routing paths from fuse box to windshield and includes an inline control box with low-voltage protection to help avoid draining the vehicle battery.

How does the kit keep my dash cam powered only when needed?

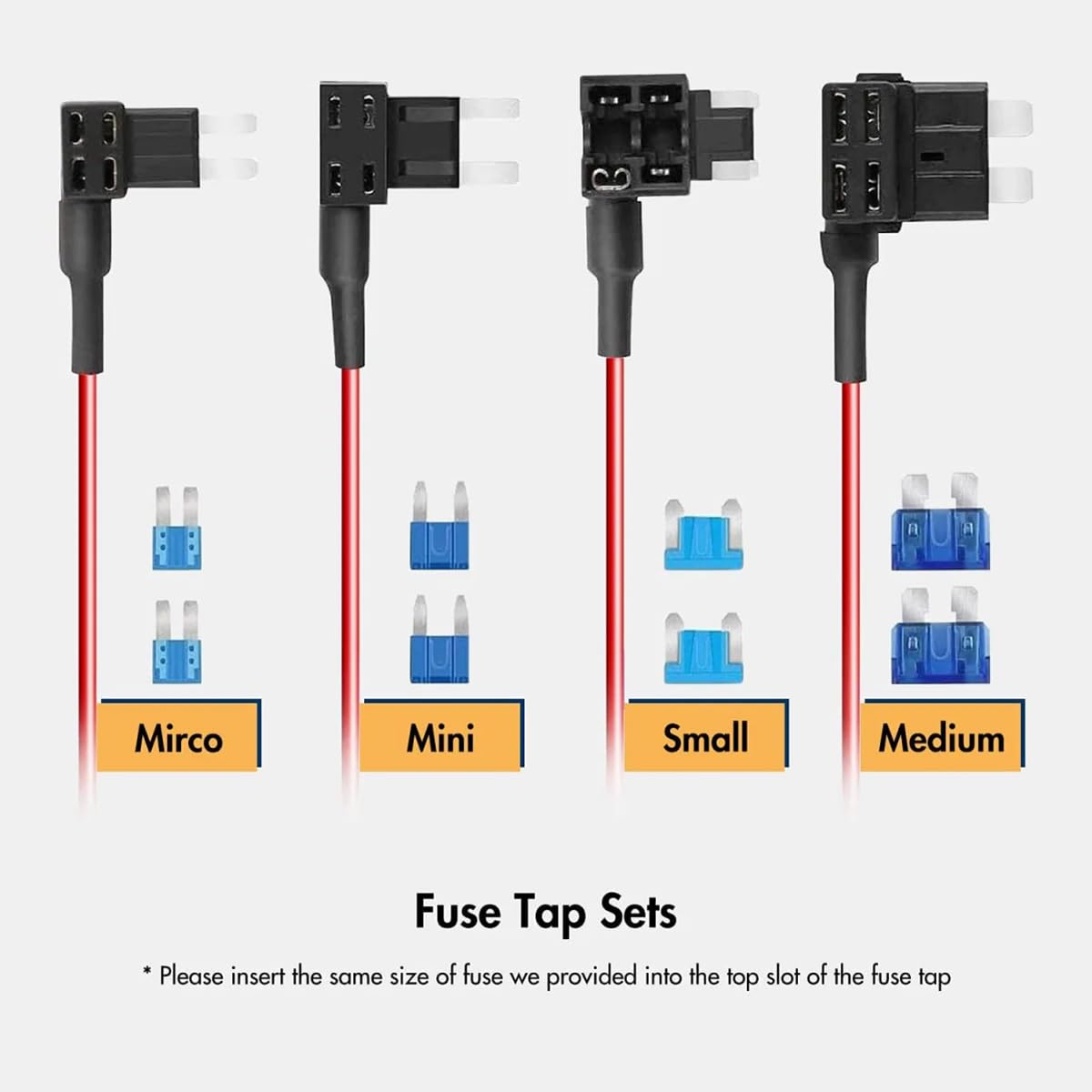

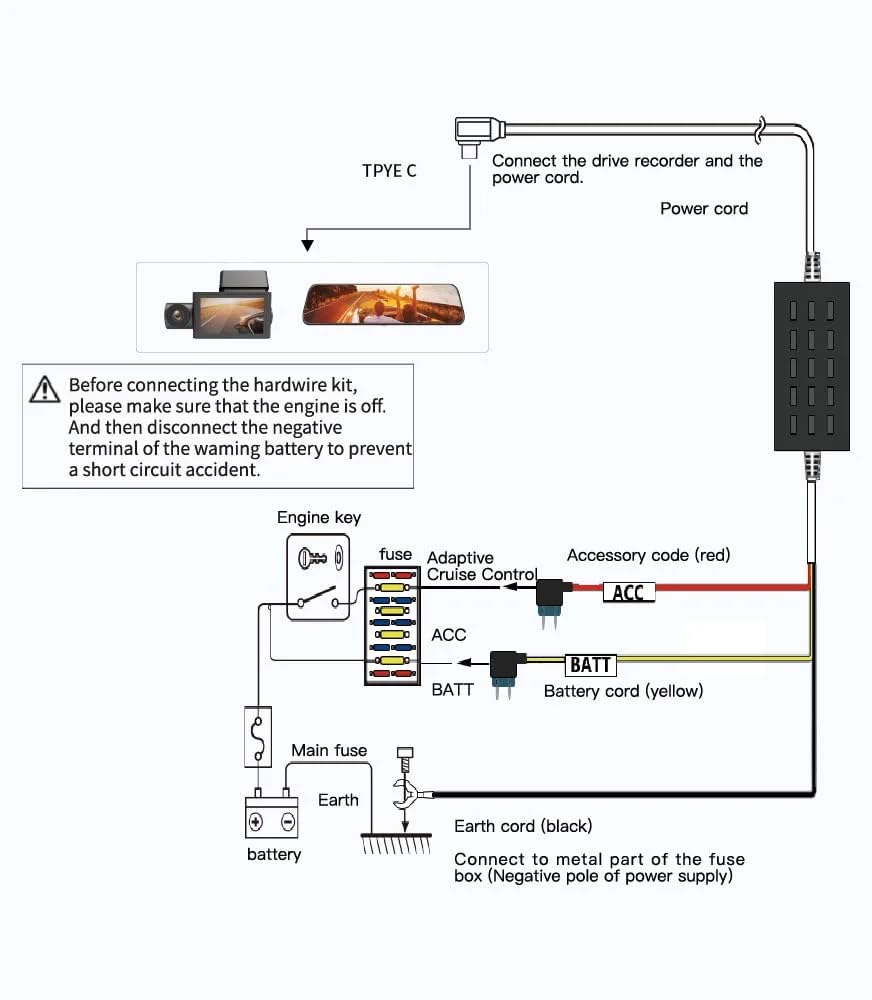

Use the ACC connection to a switched fuse so the dash cam powers on with the ignition and shuts off when the vehicle is turned off. This prevents unnecessary run time and complements the parking monitor wiring for when you want surveillance while parked. The harness uses an add-a-circuit fuse tap to access switched power without cutting factory wiring.

• ACC lead connects to a fuse that turns off with ignition
• Battery lead supports parking monitoring while parked
• No cutting of factory wires—uses blade fuse taps
• Check vehicle fuse types—three-pin/cartridge fuses not supported

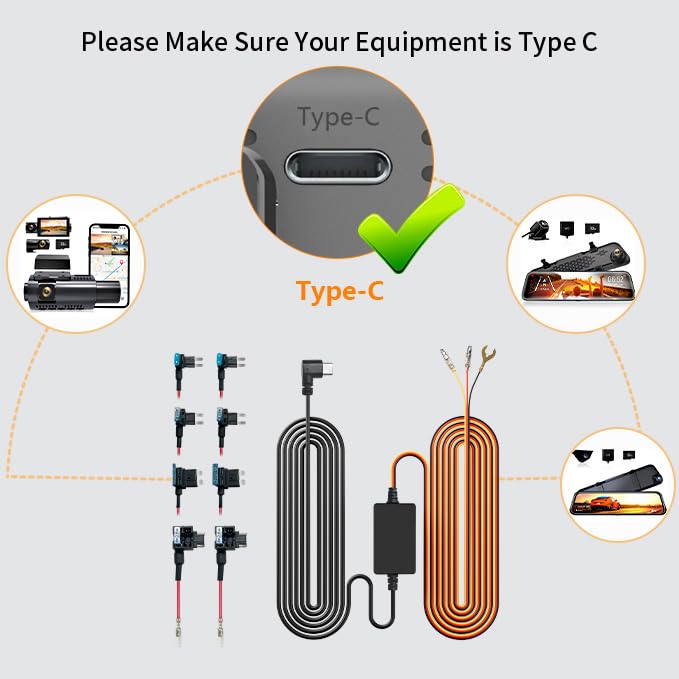

Will this work with my WOLFBOX or other USB-C dash cam?

It’s designed for WOLFBOX USB-C models such as G900 PRO, G900 Core, G900 Tripro, G850 PRO, G840H, G840S, G930, i07, i17, X5 and X3. The kit also powers any USB-C dash cam that draws up to 5V/4A. Note that the kit delivers power only to the primary dash unit; any rear or bumper cameras still connect to that main unit as intended.

• Compatible with listed WOLFBOX models and other 5V/4A USB-C cams
• Powers only the main dash unit—rear cameras remain connected via the camera’s wiring
• Total harness length is 11.48 feet—measure routing before installation

How does the low-voltage cutoff protect my vehicle battery?

The inline control box has a built-in cutoff that stops supplying power when battery voltage falls below a preset threshold, helping prevent deep discharge. For 12V systems the cutoff trips at 11.8V and for 24V systems at 22.8V. The cutoff level is fixed at the factory, so if your vehicle will be idle for an extended period, turn off parking mode from the camera menu to avoid accidental draw.

• Automatic cutoff at 11.8V (12V systems) or 22.8V (24V systems)
• Factory-set threshold—no user adjustment available
• Recommended to disable parking monitor for long-term storage

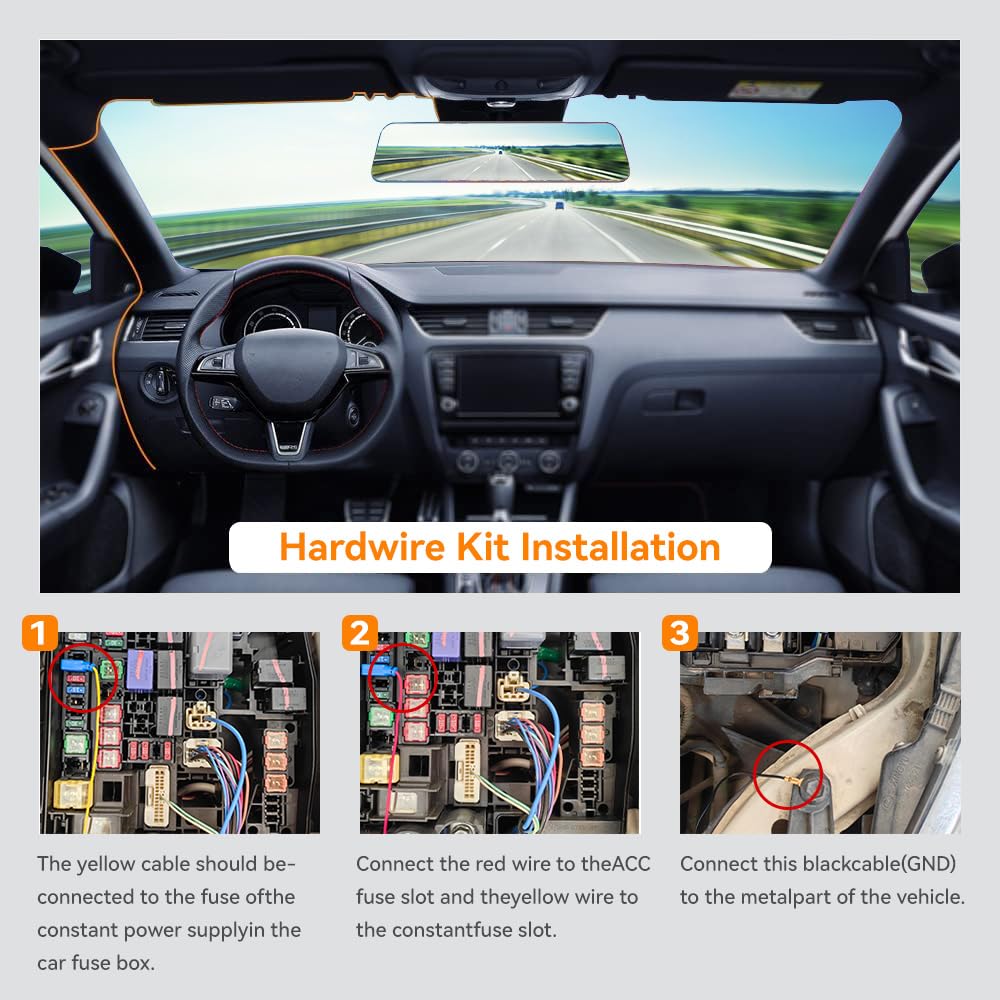

What should I check before attempting installation?

Confirm that your vehicle’s fuse box accepts blade fuse taps and that a switched ACC fuse is available; some cars use non-supported fuse types or lack an accessible switched circuit. Measure the routing path from fuse box to windshield to ensure 11.48 feet is sufficient. If you need extra length, an extended kit option exists under ASIN B0GFL6811G.

• Inspect fuse box for blade-fuse compatibility and a switched ACC fuse
• Measure the cable path to ensure 11.48ft covers routing needs
• Use the add-a-circuit tap to avoid cutting factory wiring

Who this is for: Drivers who want a tidy, permanent power solution for compatible WOLFBOX or other 5V/4A USB-C dash cams. It’s ideal for owners who prefer ignition-linked operation plus optional parking monitoring without visible adapter cords, and for installers who want a reversible, fuse-tap-based connection. Not recommended if your vehicle uses non-blade fuses or if you require powering additional rear cameras directly from the hardwire kit.
