ZOZOMOTORS Dual Electric Fan Relay Kit – 40A Waterproof, 185°F On / 175°F Off Thermostat

Overview

Meet the ZOZOMOTORS Dual Electric Fan Relay Kit, a compact, all‑in‑one solution for precise radiator cooling fan control. This kit combines a 40A waterproof relay, a temperature switch, and a complete wiring harness. It is designed as a direct replacement for common 10, 12, 14, and 16 inch cooling fans, helping you streamline installation and maintain consistent cooling behavior without guesswork.

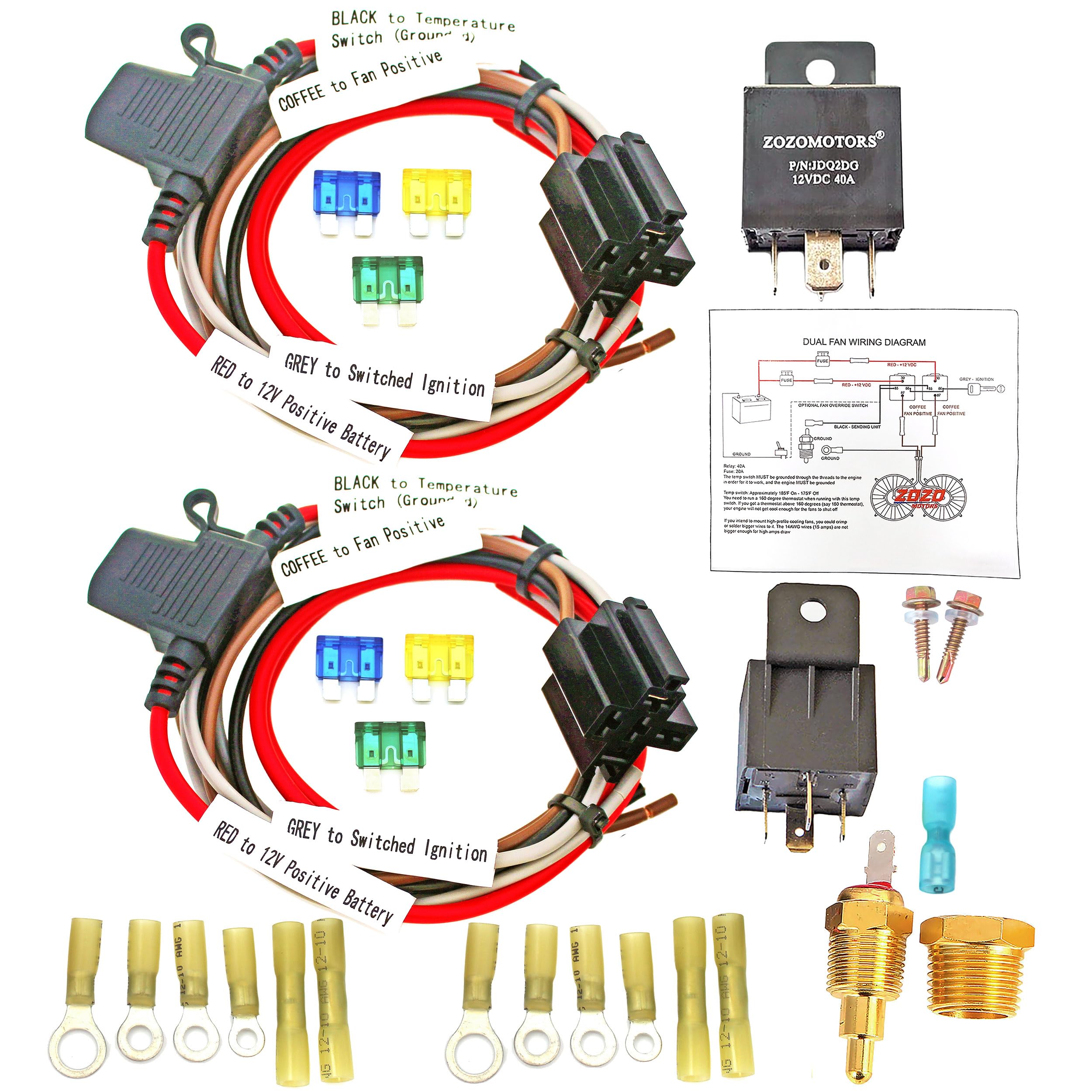

What’s included

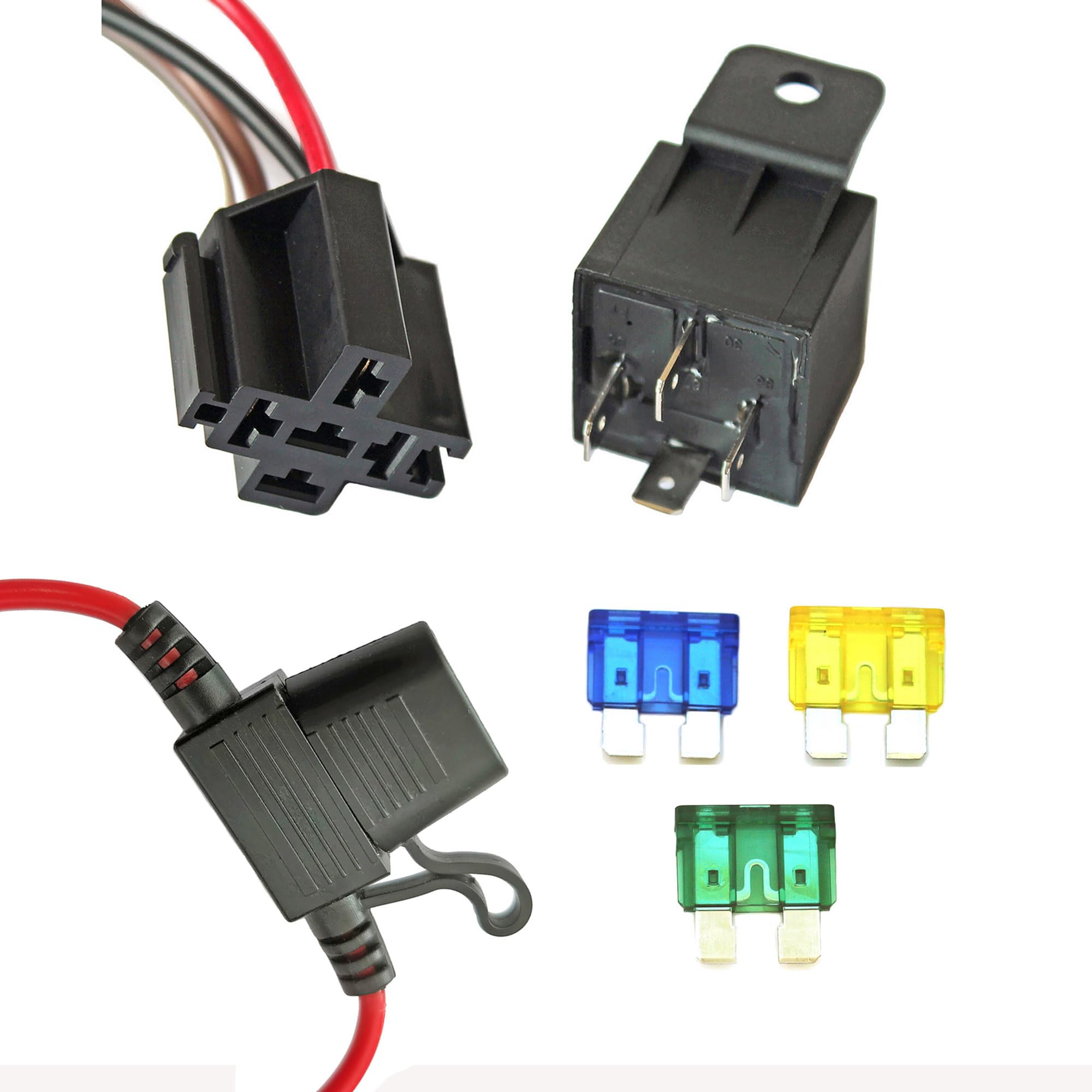

• 40A relay with inline fuse holder
• Wiring harness with clearly labeled, color‑coded wires

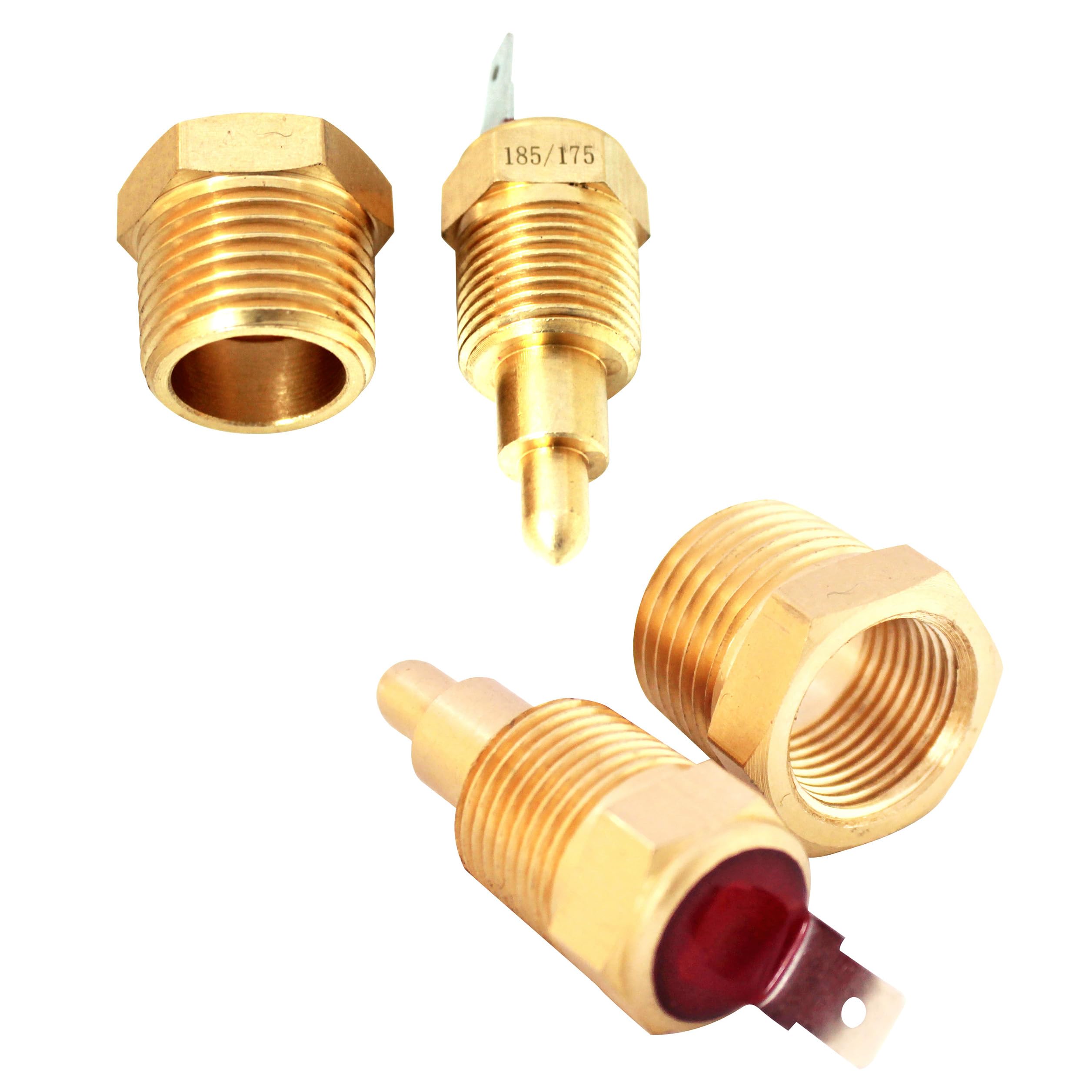

• Temperature switch with 3/8 inch pipe thread and 1/2 inch adapter

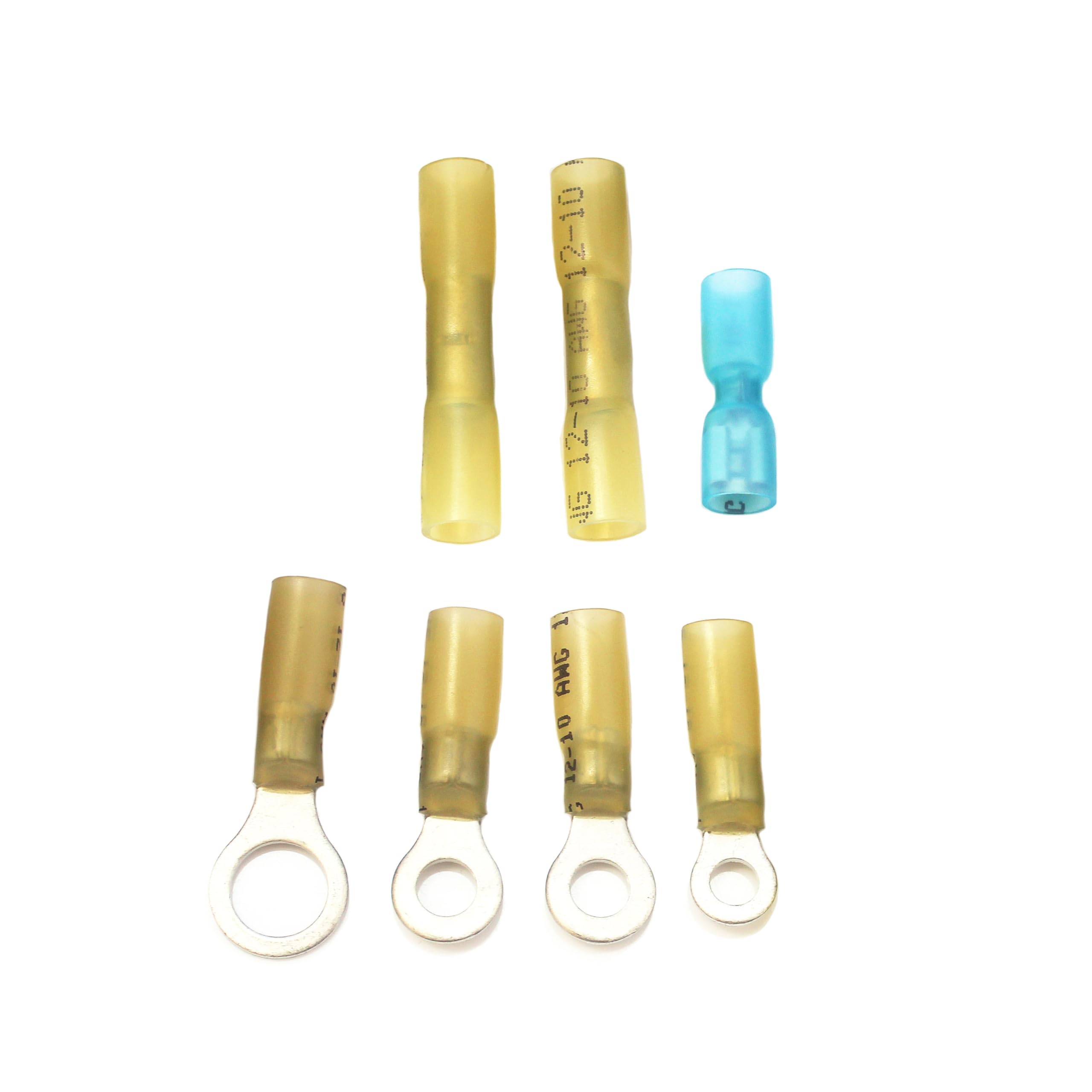

• Spade connector for the temperature sensor, 8 ring terminals, and 4 additional wire connectors
• Comprehensive wiring diagram and all necessary hardware for a complete install

How it works

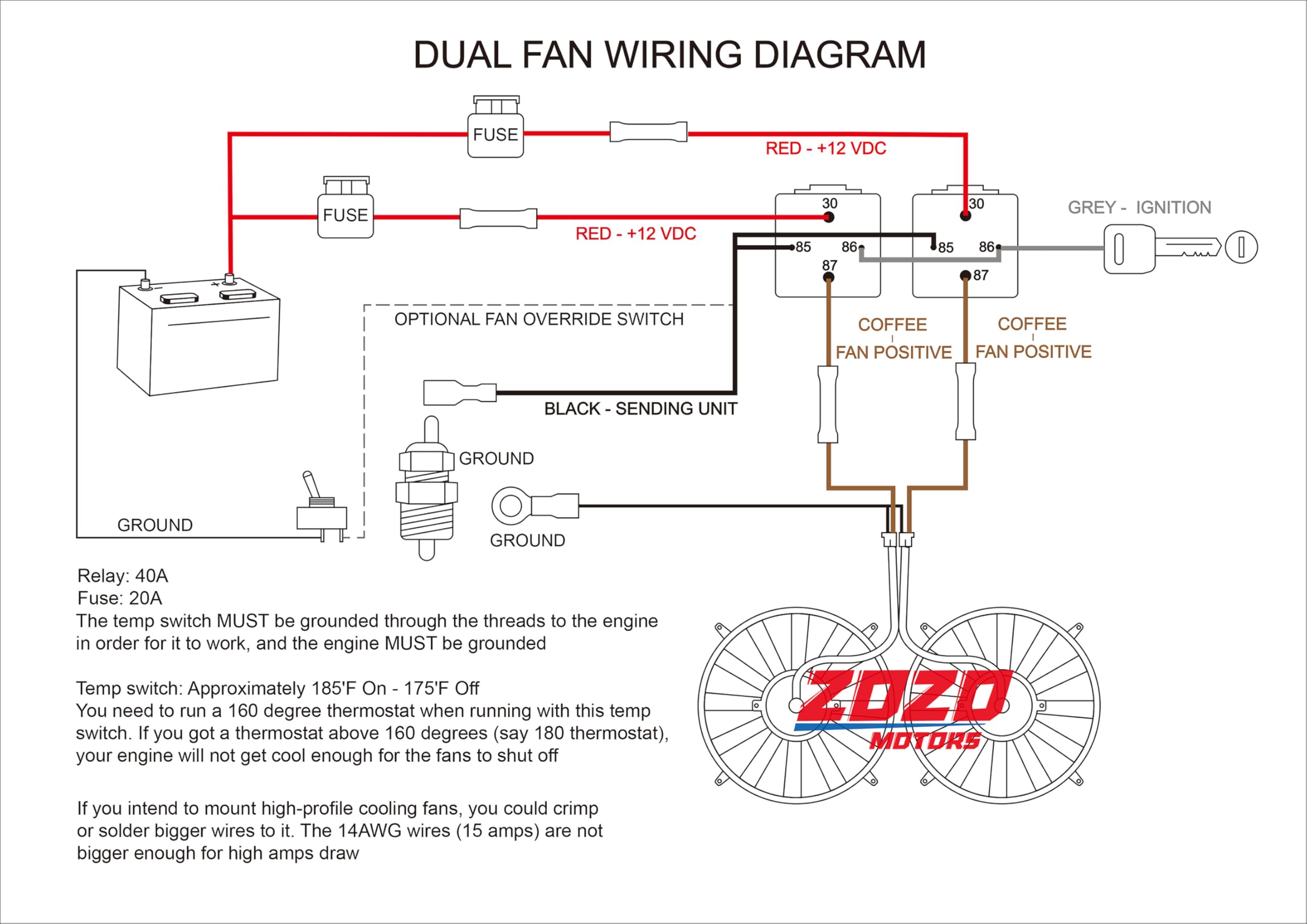

Wiring is designed to be straightforward and repeatable. Red connects to a 12V DC power source, the fan positive is tied to the kit's labeled output, black goes to the sensor circuit, and gray handles ignition according to the included diagram. The temperature switch must be grounded through the engine block to function, and the engine itself should be grounded for reliable operation.

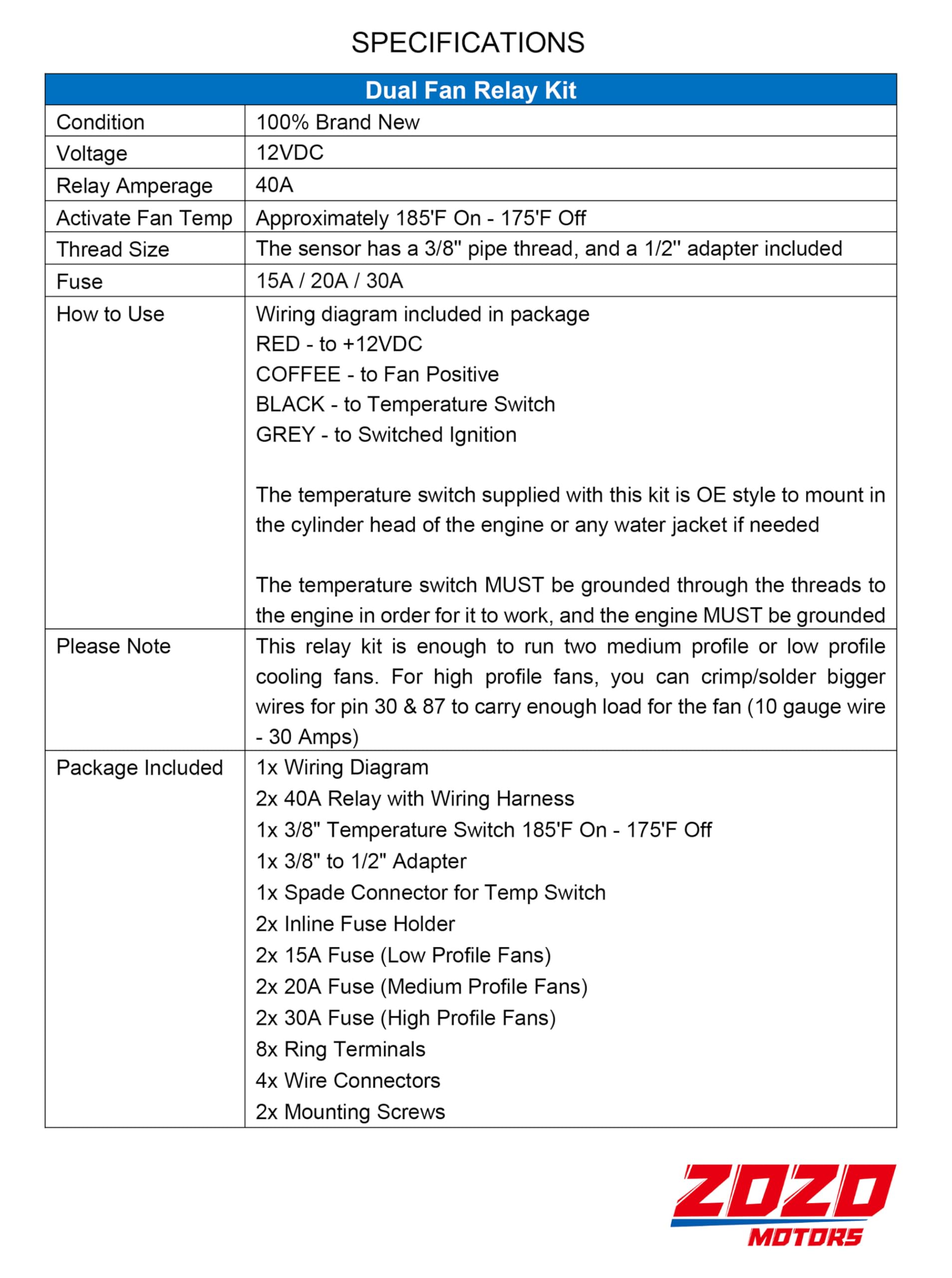

The temperature switch engages the fan at approximately 185°F and turns it off at about 175°F. The unit uses a 3/8 inch pipe thread with a 1/2 inch adapter included. For balanced performance, a 160°F thermostat is recommended when used with this switch; using a higher temperature thermostat may affect when the fan cycles off.

Two‑fan capability and compatibility

Designed to run two medium or low profile fans, this kit provides a practical cooling-control solution for many setups. If you require power for high‑profile fans, you can upgrade to the ZOZOMOTORS heavy‑duty relay kit P/N 30247 or modify with larger gauge wires to handle increased current draw.

Why choose ZOZOMOTORS

• All wires are clearly labeled and color‑coded for straightforward installation

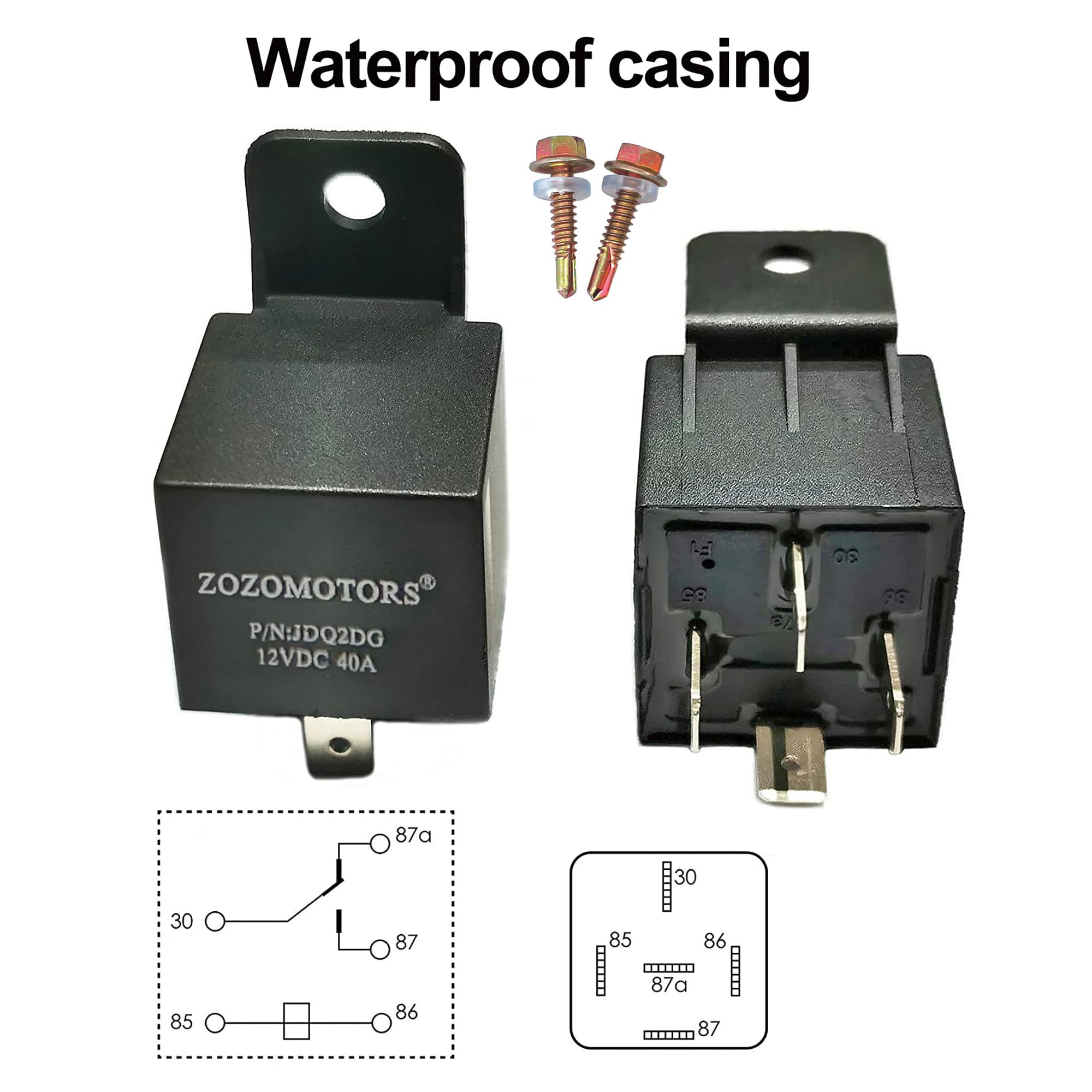

• Waterproof design helps protect connections in varied driving conditions
• Direct replacement fit simplifies upgrades for 10–16 inch fans
• Inclusive hardware kit means you have what you need to complete the install
